Grundfos CME User Manual

English (GB)
32

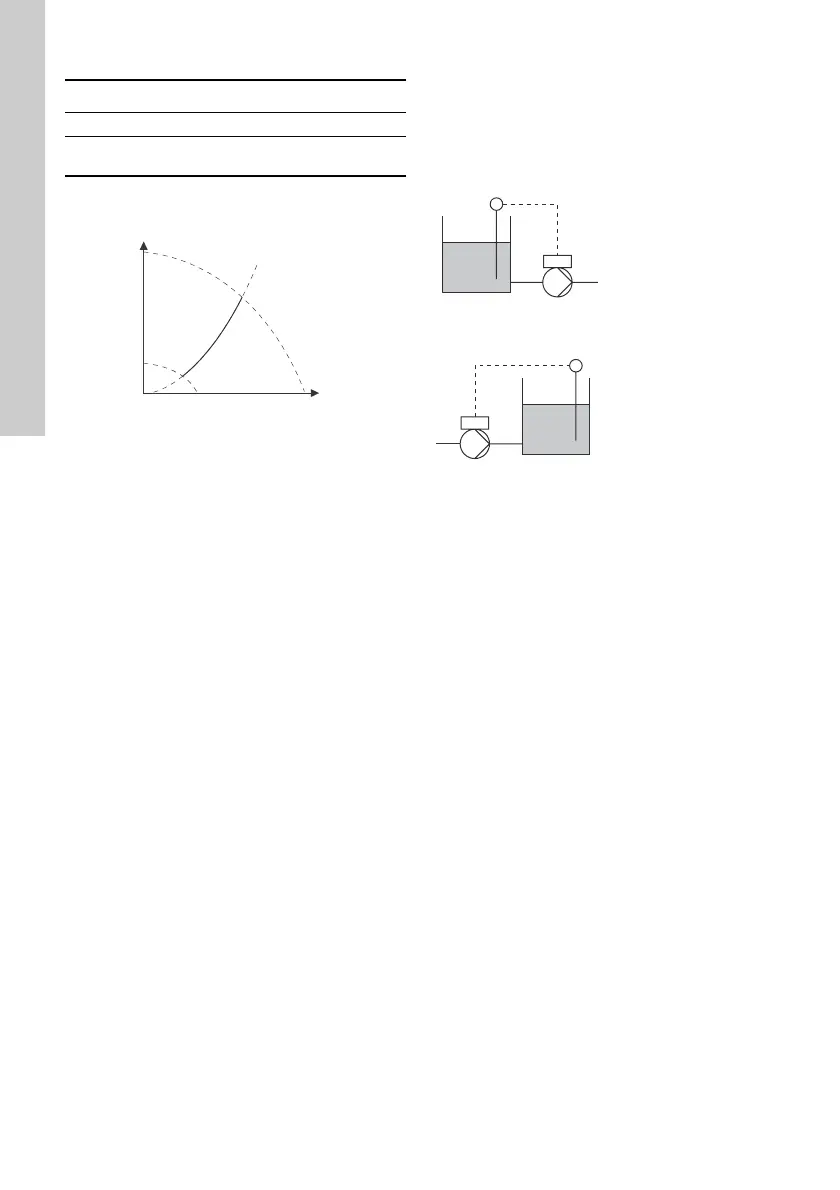

13.5.6 "Constant level"
The pump maintains a constant level, independently
of the flow rate. See fig. 36.
Fig. 36 "Constant level"
This control mode requires a level sensor.
The pump can control the level in a tank in two ways:
• As an emptying function where the pump draws
the liquid from a feed tank.
• As a filling function where the pump pumps the
liquid into a storage tank.
See fig. 37.
The type of level control function depends on the
setting of the built-in controller. See section
13.12 "Controller" (Controller settings).
Fig. 37 "Constant level"
Controller settings
For recommended controller settings, see section
13.12 "Controller" (Controller settings).
Factory setting
See section 24. Factory settings.
Pump variant "Constant level"
CME ●
CRE, CRIE, CRNE,
SPKE, MTRE
●
TM05 7941 1613
H
Q
Examples
• One level sensor.
– emptying function (feed tank).
• One level sensor.
– filling function (storage tank).
L
L
