The Delta Peak-Start table contains the numerical values for the graphical results obtained
at resonant frequency. The table includes the resonant frequency (Hz), ΔB (mmho) and ØB
(degrees). The starting pressure and peak in daPa are also displayed.
Tab 3-Tympanogram at Resonant Frequency

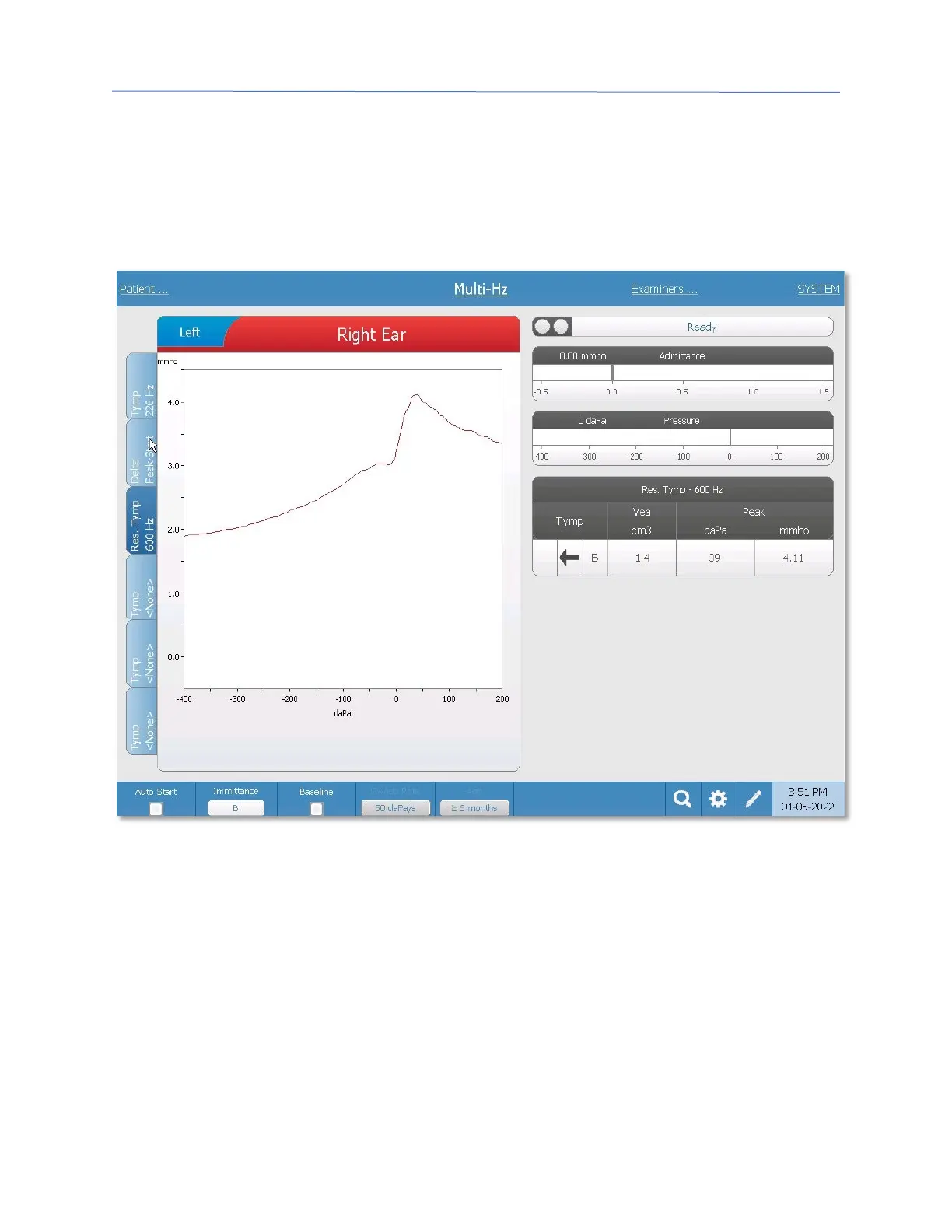

The tympanogram obtained at resonant frequency is displayed in the graph (immittance
component B). The table on lower right side of the graph displays the results of the
measurement. The header of the table indicates the resonant frequency. The Tymp column
displays the direction of the pressure sweep and the immittance component that is being
shown on the tympanogram. The Vea column displays the acoustic equivalent volume (in
cm
3
). The Peak column displays the pressure (daPa) and admittance (mmho) value of the
peak of the tympanogram.
