GUDEL FlexxPump4 D - Fig. 3 -3 Dimensions and Connections Flexxpump4 D

3.3.1 FlexxPump
3.3.1.1 Dimensions and connections FlexxPump4 D
96
107
110.8
103
108.5
198.4
33.5
A B

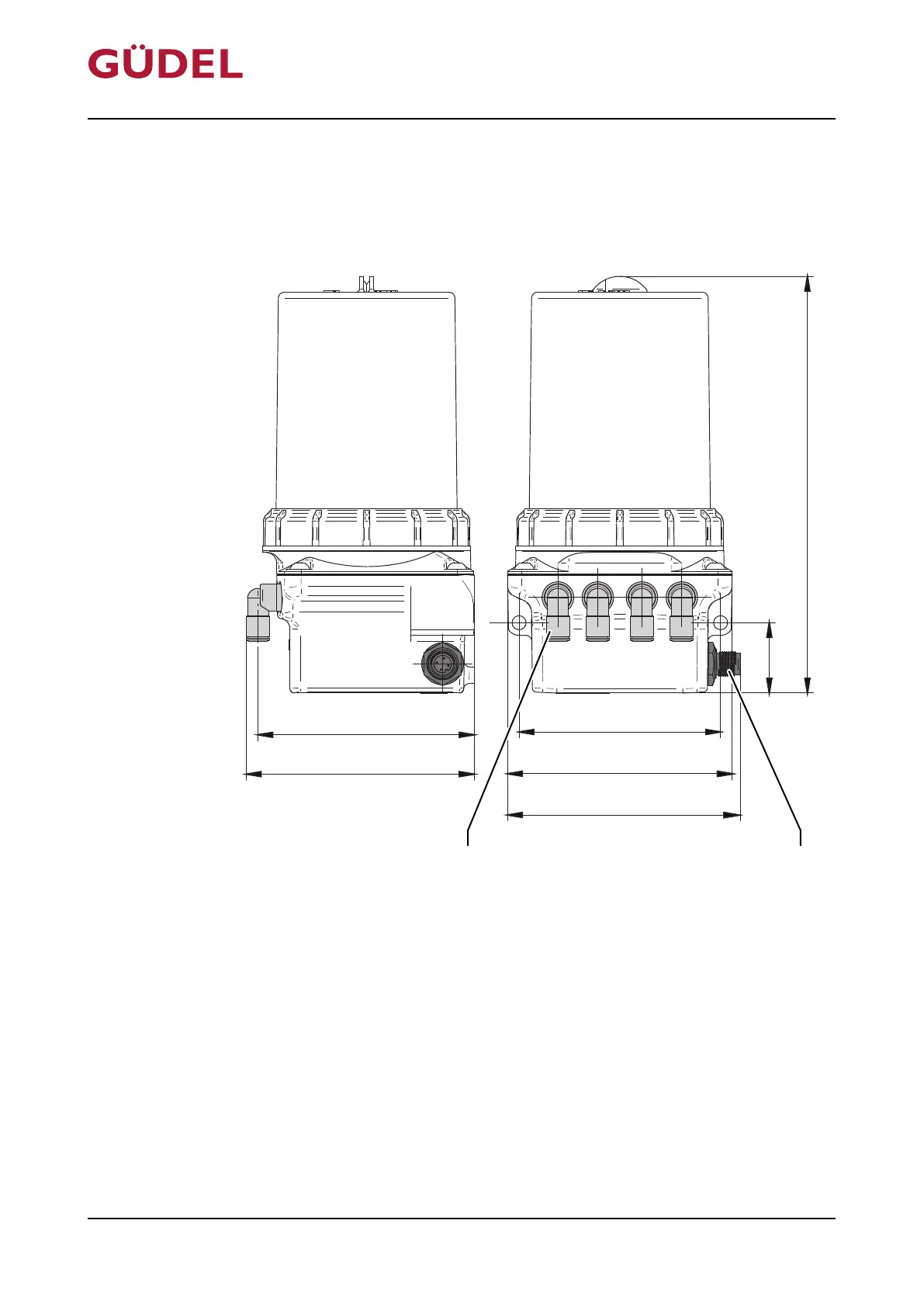

Fig.3-3 Dimensions and connections FlexxPump4 D
A Hydraulic output
B Connection plug M12x1
Connections
Hydraulic:
• Four connections for lubrication lines with a diameter of 6/3mm
Electric: The four-pole connection size M12x1 transmits the following signals:
• Control signals
• Operating voltage
Product description OPERATING MANUAL Lubrication system FlexxPump4D
9007202674126091_v2.0_EN-US
28
