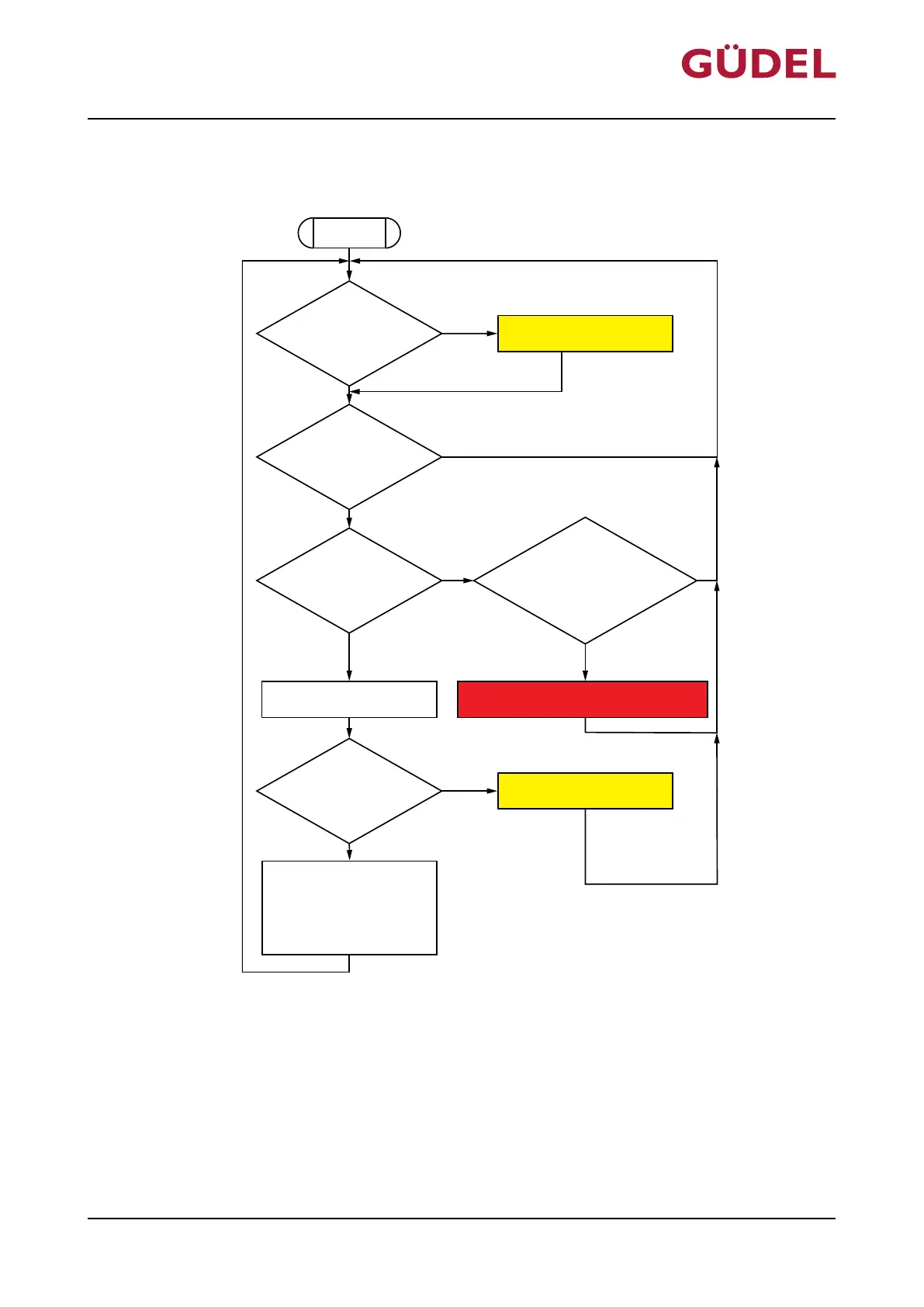

GUDEL FlexxPump4 D - Fig. 5 -7 Flow Diagram Programming Software

5.5.1 Suggested solution: Programming software
Start
Pump fault? /
Cartridge empty?
Set warning message**
Yes
Indicator
reached? / Manual
start?
Yes
No
No
Pump ready?*
Yes
No
Indicator
(distance; cycle number;
time)
started?
Yes
Set flag for machine stopStart lubrication cycle
Successful? (no
timeout)
Yes
No
Reset warning
Reset flag for machine stop
Set warning message**
** = Reset corresponding warning message as soon as OK again
* = No fault (5 s input) AND not empty AND lubrication cycle not started
No
Fig.5-7 Flow diagram Programming software
