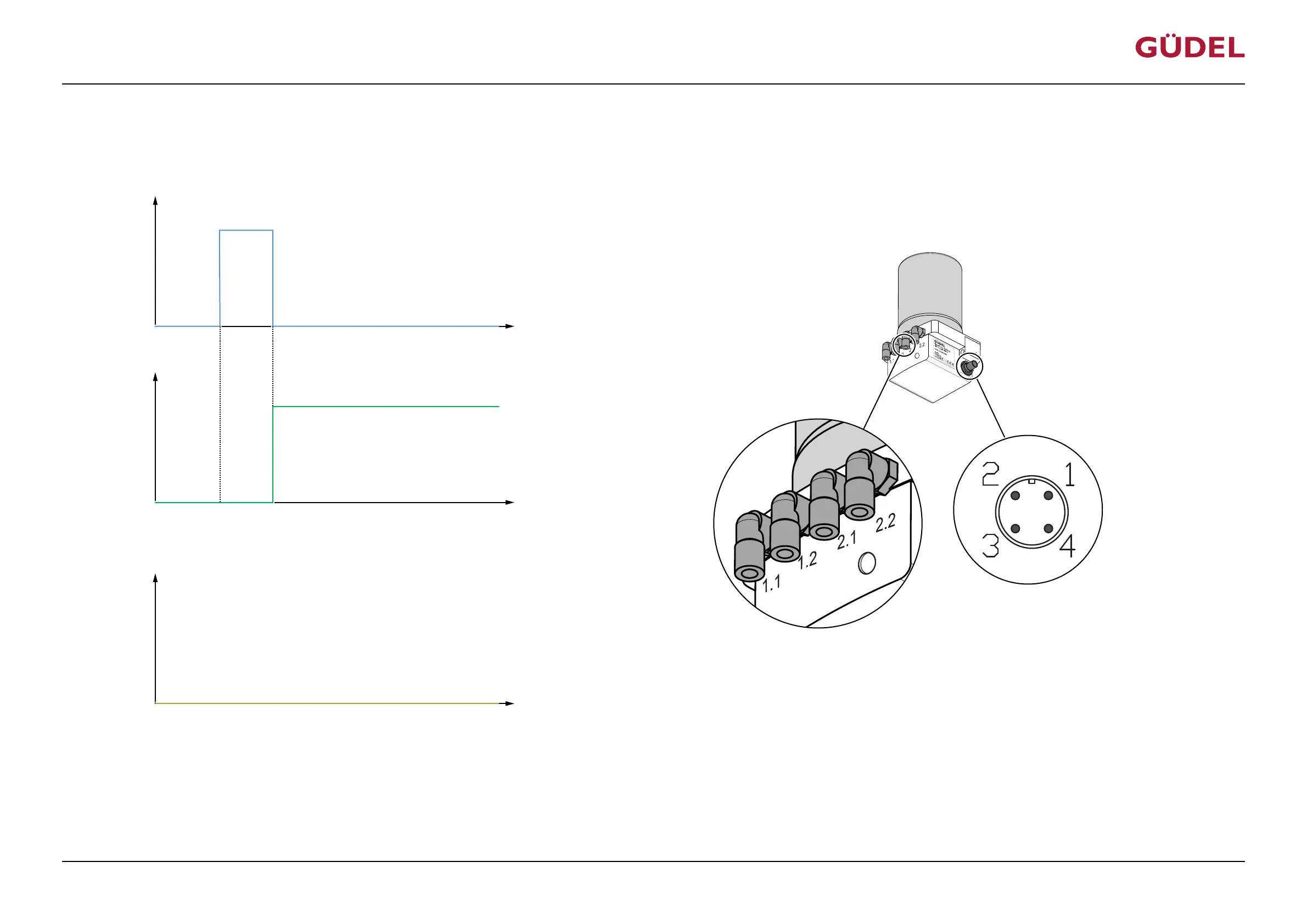

GUDEL FlexxPump4 D - Fig. 5 -10 Switching Time Diagram: Reset the Error

5.5.2.3 Reset the error
The following signal on PIN 2 causes the reset of general errors:
>3s
Input signal PIN 1
Output signal PIN 4
U
U
+24 V
(High)
+ 0 V
(Low)
(Low)
+ 0 V
(High)
+24 V
t
t
Hydraulic output
t
V
14 s
Fig.5-10 Switching time diagram: Reset the error
For general errors, the lubrication system issues a Low (+0 V) signal on PIN 4 lasting more than 3 seconds. The output signal on PIN 4 is High (20...30V) during normal operation. During an actual mo-
tor run of the lubricating system, the signal switches to Low (+0V). Normally this takes between about 7 and 17 seconds, depending on the length of the lubrication lines and the viscosity of the lubri-
cant. Afterwards, the signal switches back to High.
