GUDEL FlexxPump4 D - Fig. 7 -10 Design Flexxpump4 D 9-Fold

FlexxPump4 D 9-
fold
Lubrication system with 9 lubrication points
A B C D
H G F E

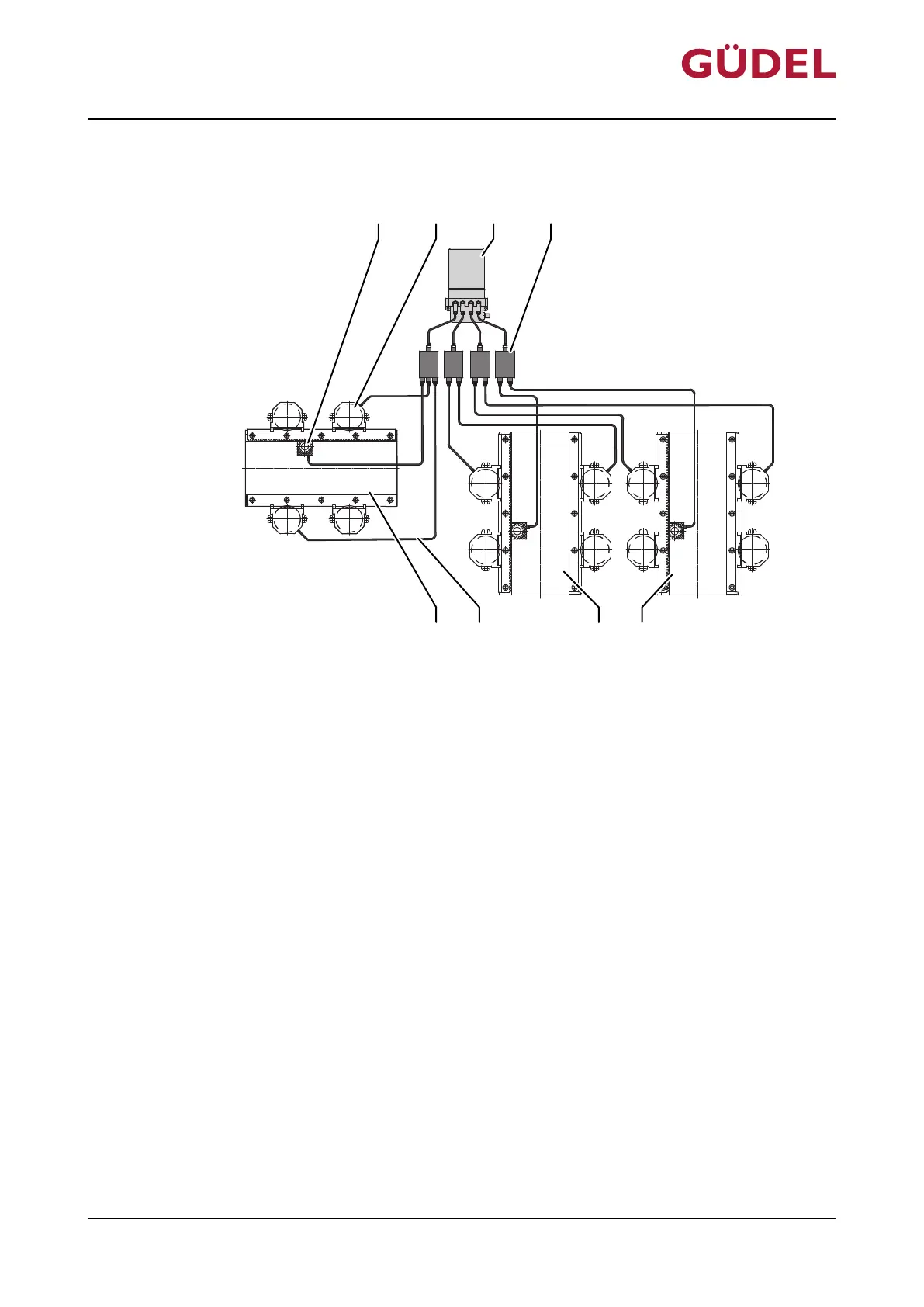

Fig.7-10 Design FlexxPump4 D 9-fold
A Lubricating pinion (not included in the
scope of delivery)
E 3. Axis (not included in the scope of de-
livery)
B Lubricating element (not included in the
scope of delivery)
F 2. Axis (not included in the scope of de-
livery)
C FlexxPump4D G Lubrication line hose diameter of
6/3mm
D Splitter H 1. Axis (not included in the scope of de-
livery)
Maintenance
OPERATING MANUAL Lubrication system
FlexxPump4D
9007202674126091_v2.0_EN-US
93
