GUDEL FlexxPump4 D - Fig. 7 -5 Replace Lubricant Cartridge; Tab. 7-10 Lubricant: Lubrication System Flexxpump

1 2 3
4 5 6
A B C
E
D

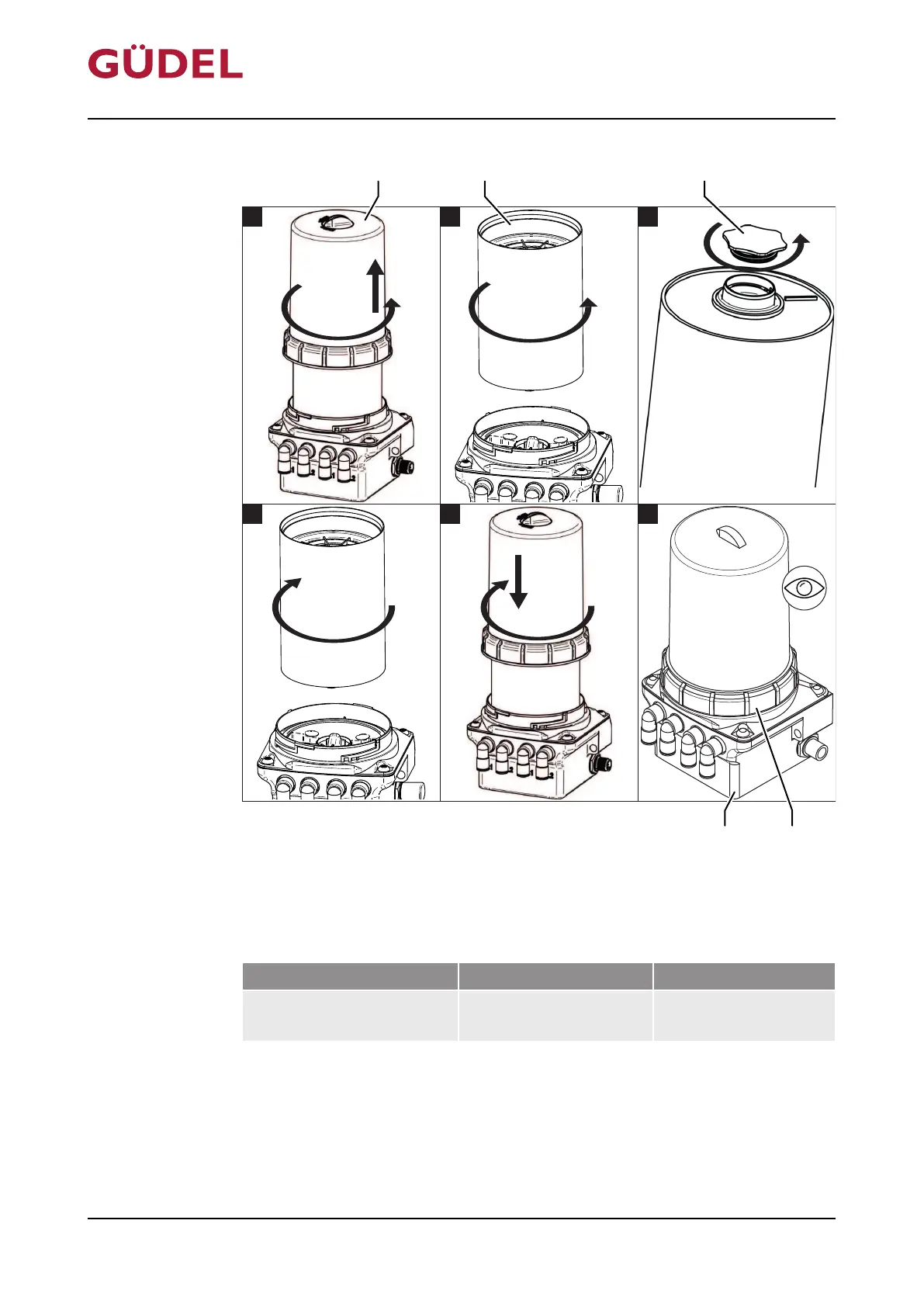

Fig.7-5 Replace lubricant cartridge
A Covering D Union ring
B Lubricant cartridge E Casing
C Cover
Lubrication ex works Specifications Lubricant quantity
ÜChapter7.2.2.1, 274 ÜChapter7.2.2.1,
274
400ml
Tab.7-10 Lubricant: Lubrication system FlexxPump
Maintenance OPERATING MANUAL Lubrication system FlexxPump4D
9007202674126091_v2.0_EN-US
