GUDEL FlexxPump4 D - Fig. 7 -11 Design Flexxpump4 D 10-Fold

FlexxPump4 D 10-
fold
Lubrication system with 10 lubrication points
A B C D E
I H G F

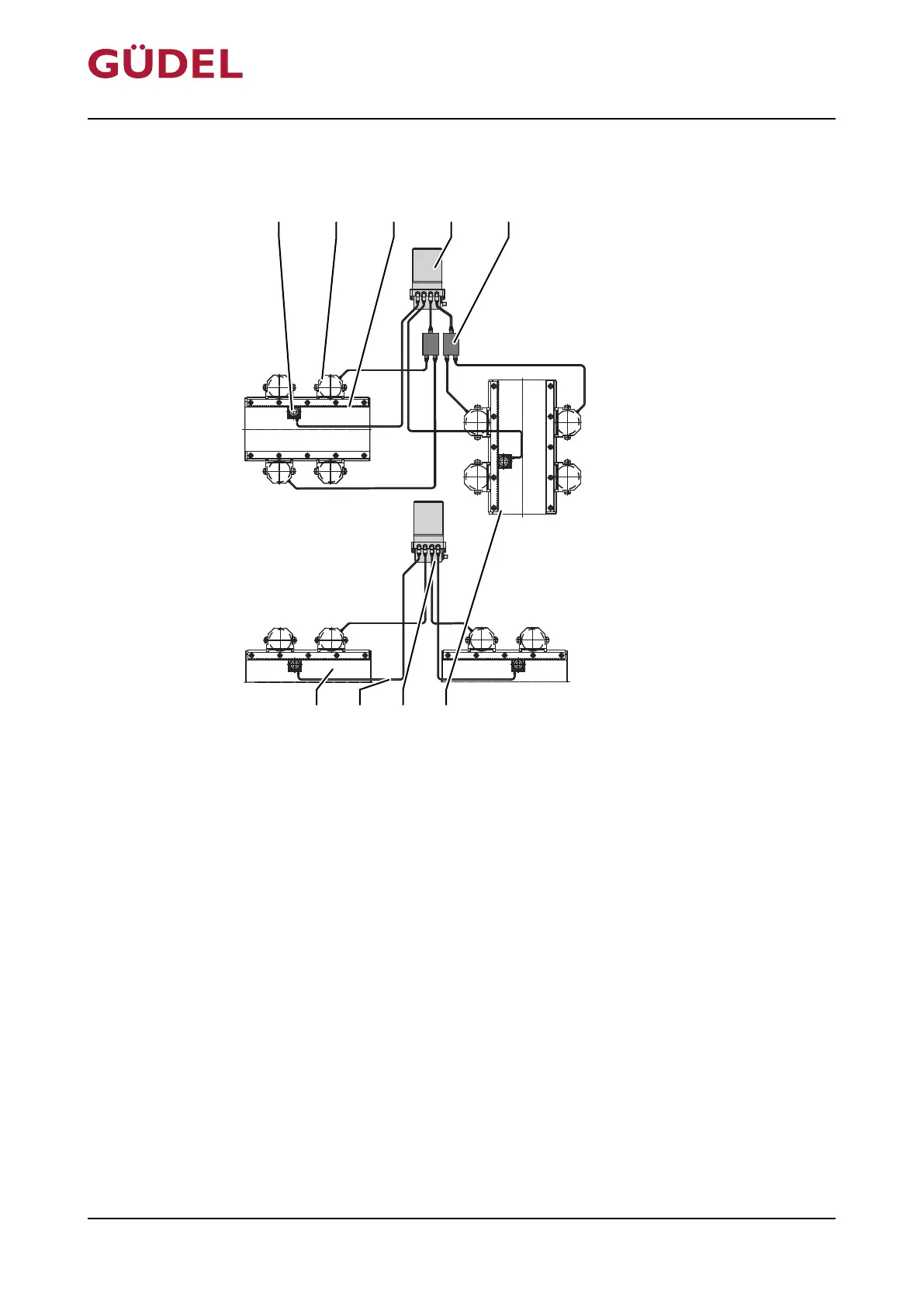

Fig.7-11 Design FlexxPump4 D 10-fold
A Lubricating pinion (not included in the
scope of delivery)
F 2. Axis (not included in the scope of de-
livery)
B Lubricating element (not included in the
scope of delivery)
G 2. FlexxPump4D
C 1. Axis (not included in the scope of de-
livery)
H Lubrication line hose diameter of
6/3mm
D 1. FlexxPump4D I 3. Axis (not included in the scope of de-
livery)
E Splitter
