Connect hydraulics
NOTE
Material damage
Closing hydraulic outputs creates an overpressure. The overpressure can
cause damage to the product.
• Do not close any hydraulic outputs
FlexxPump4 D 3-
fold
Lubrication system with 3 lubrication points
D003078
A B C
F E D

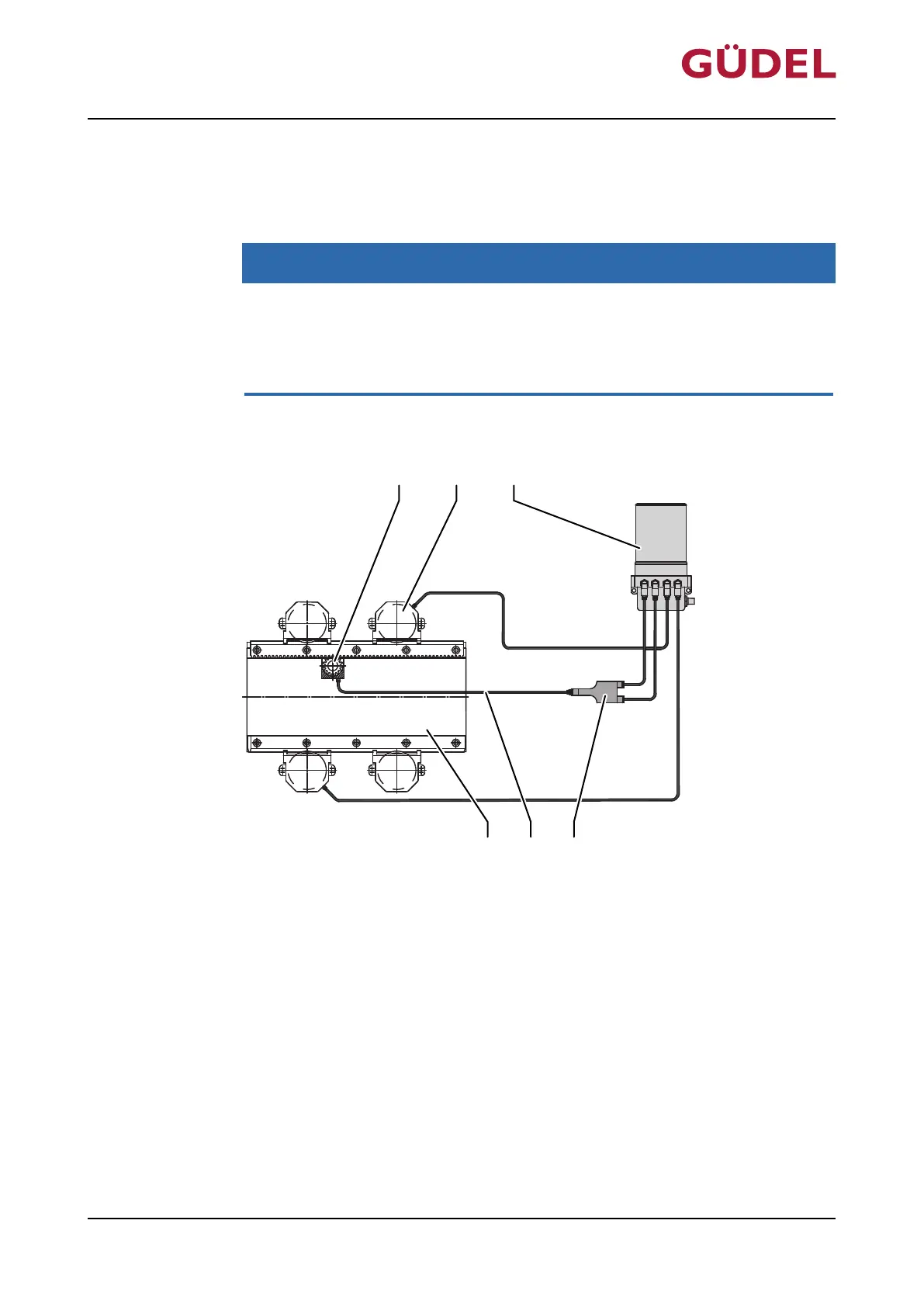

Fig.7-8 Design FlexxPump4 D 3-fold
A Lubricating pinion (not included in the
scope of delivery)
D Y-segment
B Lubricating element (not included in the
scope of delivery)
E Lubrication line hose diameter of
6/3mm
C FlexxPump4D F 1. Axis (not included in the scope of de-
livery)
Maintenance
OPERATING MANUAL Lubrication system
FlexxPump4D
9007202674126091_v2.0_EN-US
91
