GW Instek GDS-2000A Series User Manual

GDS-2000A Series User Manual
134

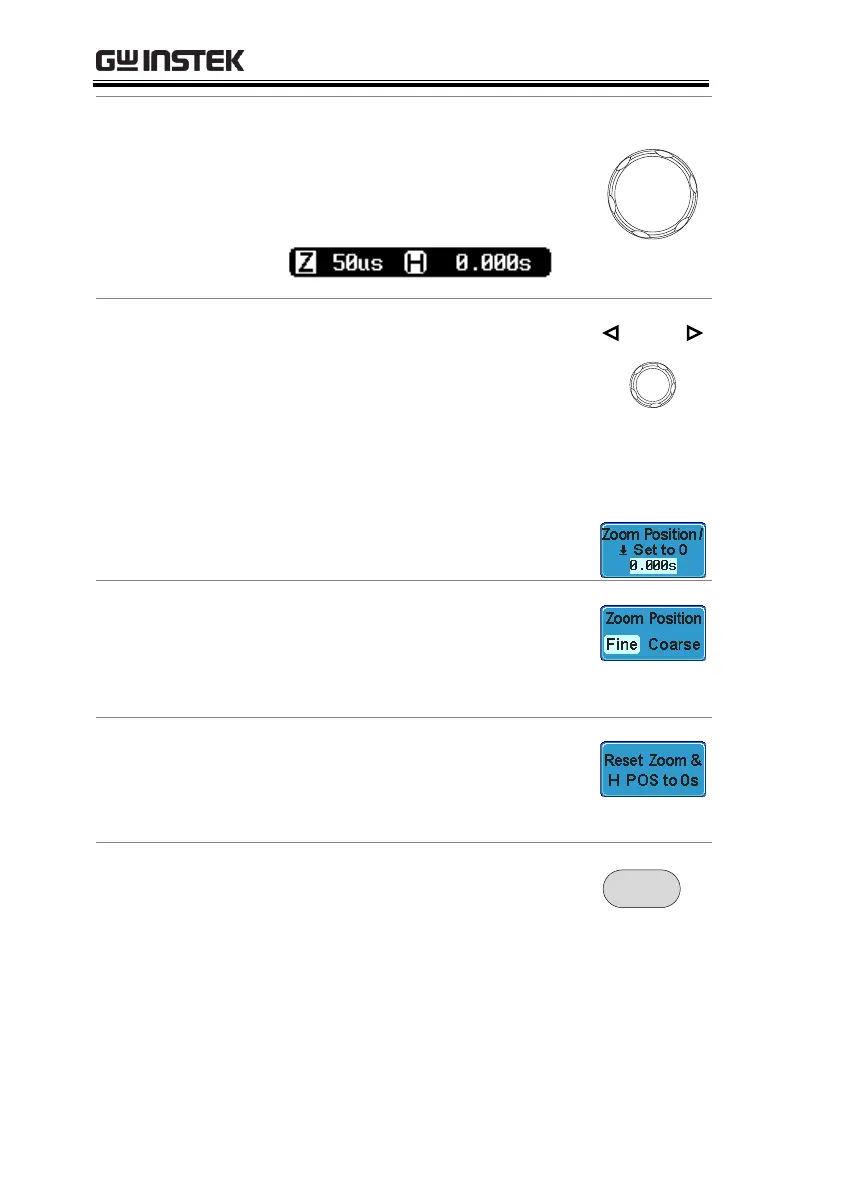

Zoom
To increase the zoom range, use the
TIME/DIV knob.
The zoom time base (Z) at the bottom
of the screen will change accordingly.
TIME/DIV
Move the Zoom
Window
Use the Horizontal Position knob to pan
the zoom window horizontally.
The position of the zoom window,
relative to the horizontal position is
shown on the Zoom Position/Set to 0.
key.
POSITION
To reset the zoom position, press
Zoom Position/Set to 0.
Scroll Sensitivity
To alter the scrolling sensitivity of the
zoom window, press the Zoom Position
key to toggle the scrolling sensitivity.
Sensitivity
Fine, Coarse
Reset the Zoom
& Horizontal
Position
To reset both the zoom and horizontal
position, press Reset Zoom & H POS to
0s.
Exit
To go back to the original view, press
the Zoom key again.
Zoom
