GW Instek GDS-2000A Series User Manual

GDS-2000A Series User Manual
200

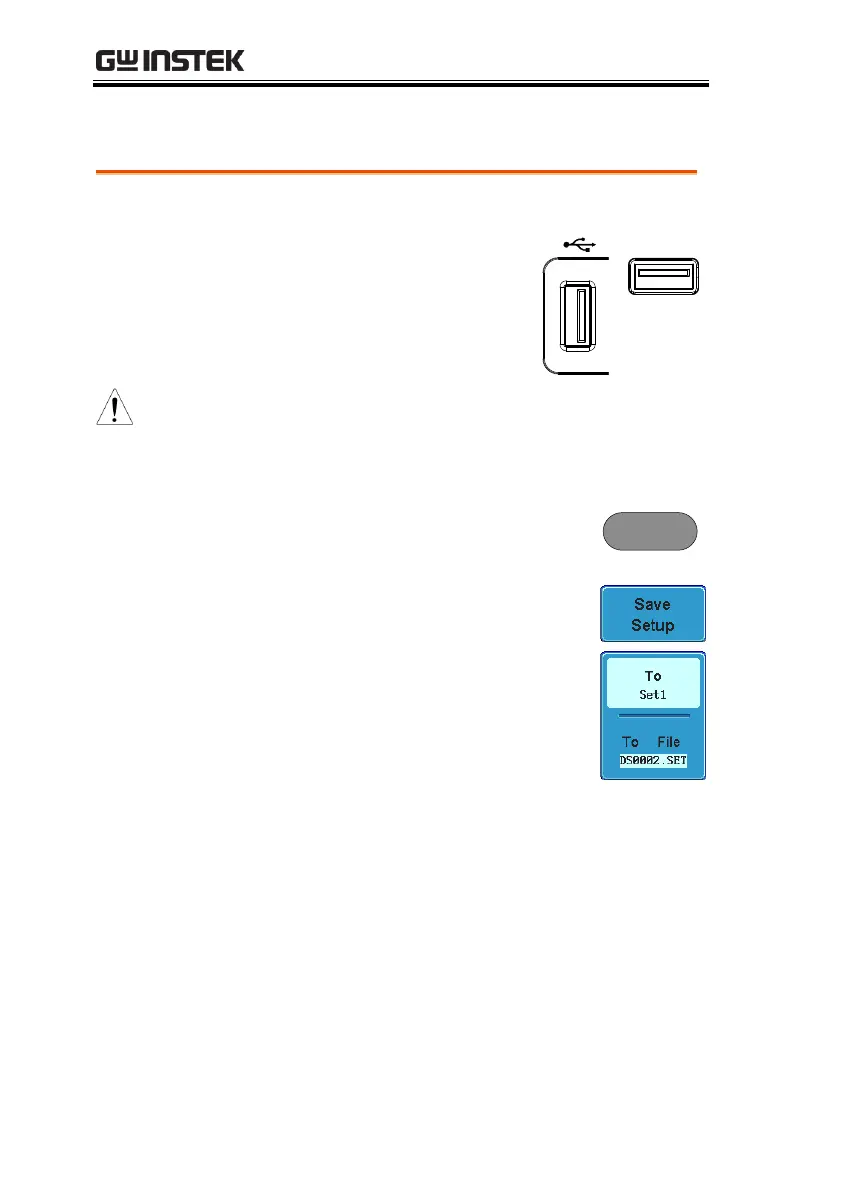

Save Setup
Panel Operation
1. (For saving to an external
USB flash drive) Connect
the drive to the front or rear
panel USB port. If a USB
drive is not connected, files
will be saved to the internal
memory.
Front
Rear
Host
Note
Only one host connection, front or rear, is allowed at a
time.
The USB Device port on the rear panel cannot be used
concurrently with the USB Host port on the rear panel.
2. Press the Save/Recall key from the
front panel.
Save/Recall
3. Press Save Setup from the bottom
menu.
4. Press To (internal memory) or To
File and choose a destination to
save.
To
Set1~Set20
To File
DSxxxx.set
