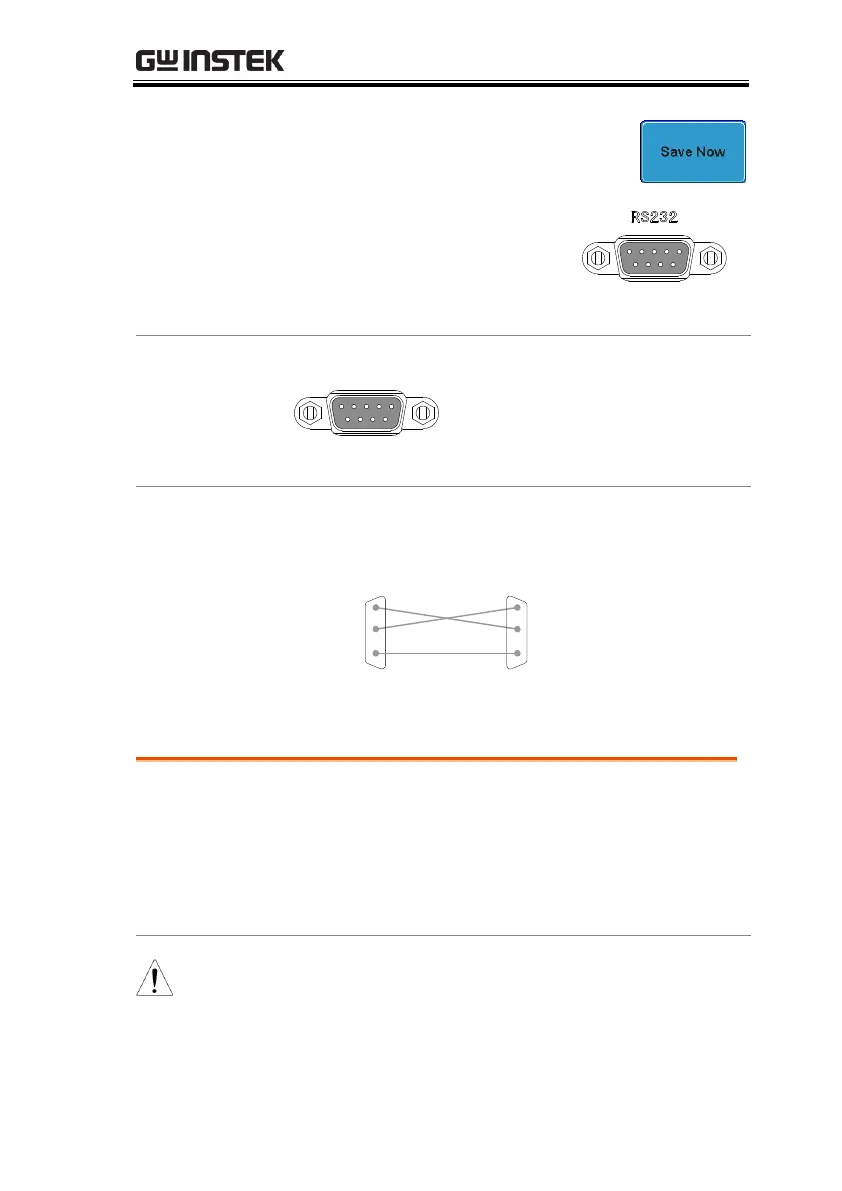

GW Instek GDS-2000A Series User Manual

REMOTE CONTROL CONFIG
225
7. Press Save Now to save the settings.
8. Connect the RS-232C cable
to the rear panel port: DB-9
male connector. For a
functionality check, see page
230.
Pin Assignment
1
2 345
6789
2: RxD (Receive data)
3: TxD (Transmit data)
5: GND
4, 6 ~ 9: No connection
PC Connection
Use a Null Modem connection as shown in the
diagram below.
GDS-2000A PC
RxDPin2 RxD Pin2
GNDPin5 GND Pin5
TxD Pin3
TxDPin3
Configure the Ethernet Interface
Ethernet
Configuration
MAC Address
Domain Name
Instrument Name
DNS IP Address
User Password
Gateway IP Address
Instrument IP
Address
Subnet Mask
HTTP Port 80 (fixed)
Note
The Ethernet option, DS2-LAN, must first be installed
before proceeding. Please see page 30 for further
details.
