GW Instek GDS-2000A Series User Manual

GETTING STARTED
17

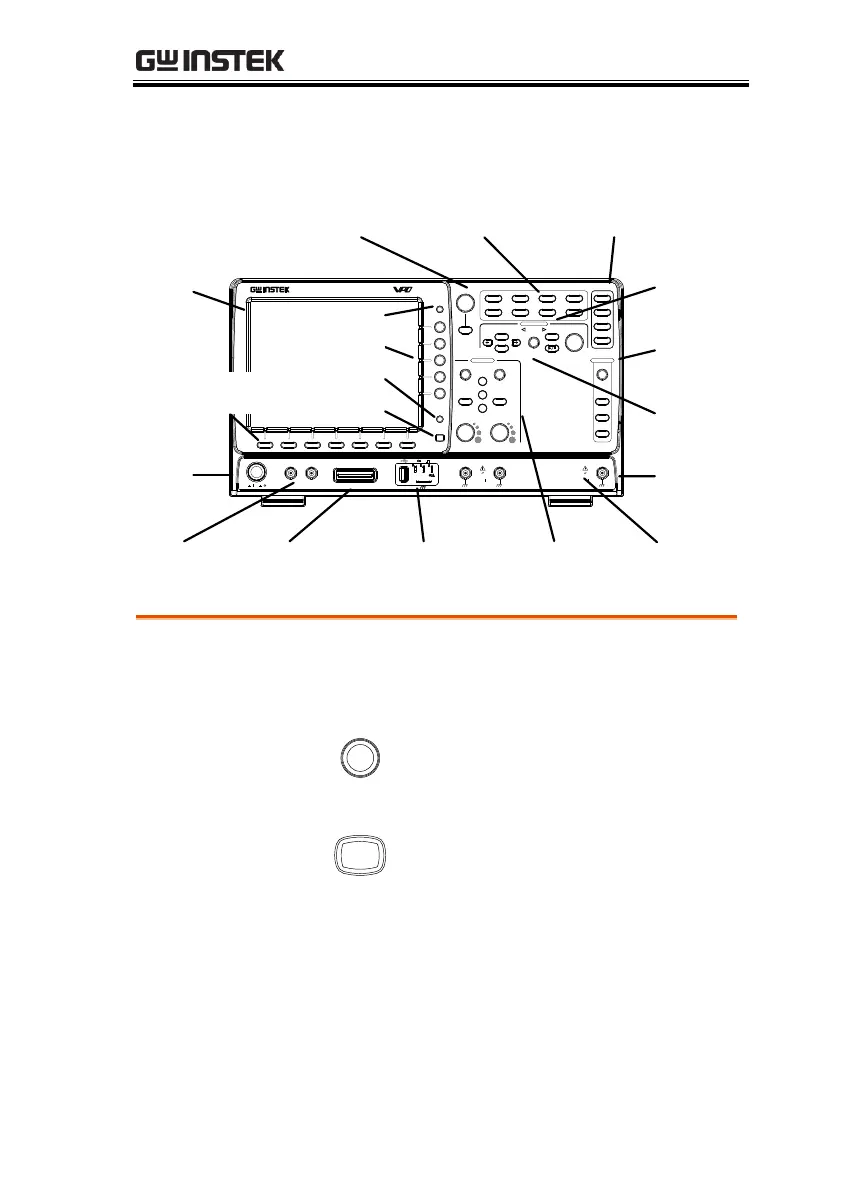

GDS-2072A/2102A/2202A/2302A Front Panel
CH1 CH2
POSITION
TIME/DIV
POSITION
POSITION
VOLTS/DIV VOLTS/DIV
Autoset
Menu
50 %
Force-Trig
Select
TRIGGER
HORIZONTAL
VARIABLE
Measure Cursor
Display Help Save/Recall Utility
Acquire
Single
Run/Stop
LEVEL
Search
Set/Clear
VERTICAL
Test
POWER
2V
Hardcopy
Option
Menu Off
Zoom
CAT
M 16pF
300Vrms MAX.
1
CAT
M
W
16pF
300Vrms MAX.
1
M
R
B
MATH
REF
BUS
Default
Logic Analyzer
GEN 1 GEN 2
CH1 CH2 EXT TRIG
Digital Storage Oscilloscope
GDS-2202A
200 MHz 2 GS/s
Visual Persistence Oscilloscope
W
LCD
Variable knob
and Select key
Autoset, Run/Stop, Single
and Default settings
CH1~CH4
input
Trigger
controls
Function
keys
USB Host port,
Demo and Ground
terminals
Function
Generator
output 1&2
Power
button
Hardcopy key
Option key
Math,
Reference and
Bus keys
Bottom
menu keys
Horizontal
controls
Menu key
Vertical
controls
Logic
Analyzer
input
EXT
trigger
Side menu keys
LCD Display
8” SVGA TFT color LCD. 800 x 600 resolution,
wide angle view display.
Menu Off Key
Menu Off
Use the Menu Off key to hide the
onscreen menu system.
Option Key
Option
The Option key is used to access
any installed options, such the
Logic Analyzer option.
