GW Instek GDS-2000A Series User Manual

MEASUREMENT
71

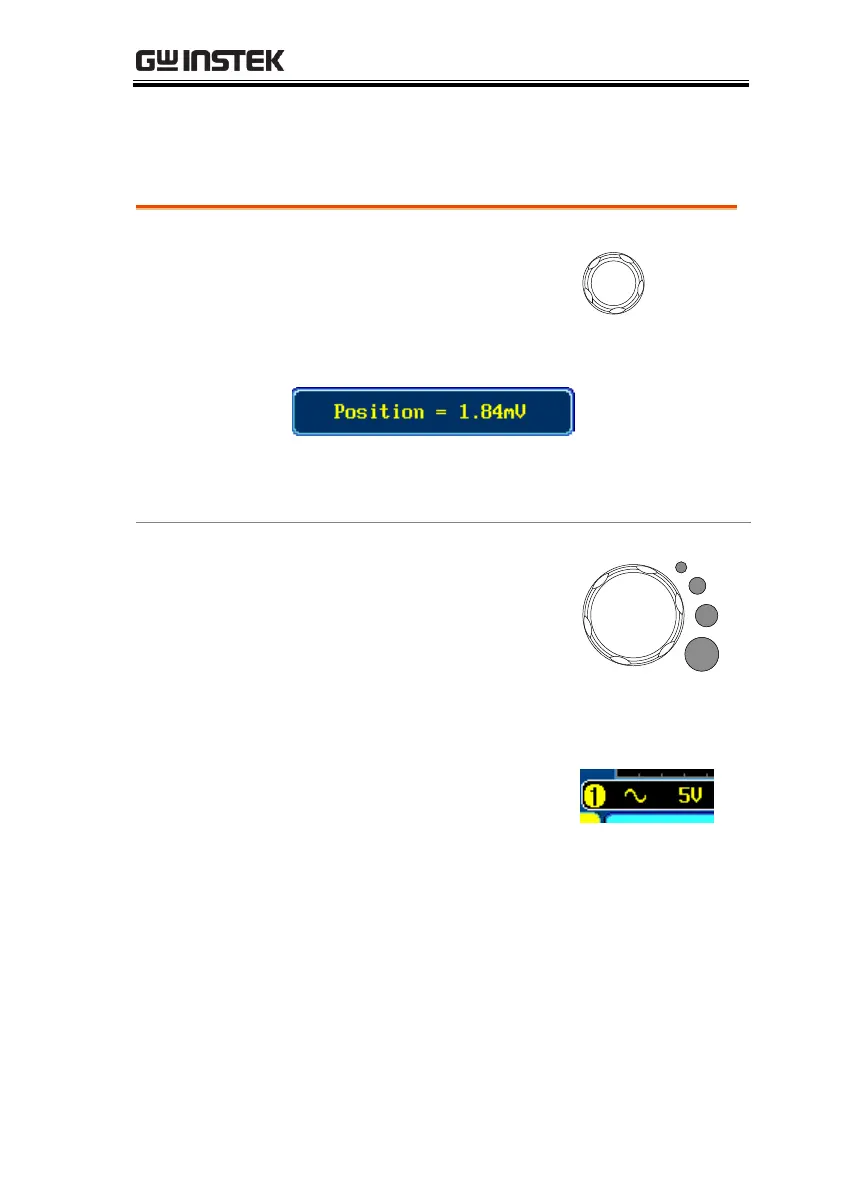

Vertical Position/Scale
For more detailed configuration, see page 137.
Set Vertical
Position
To move the waveform up or
down, turn the vertical position
knob for each channel.
POSITION
As the waveform moves, the vertical position of
the cursor appears on the display.
Run/Stop
mode
The waveform can be moved
vertically in both Run and Stop
mode.
Select Vertical
Scale
To change the vertical scale,
turn the VOLTS/DIV knob; left
(down) or right (up).
VOLTS/DIV
Range
1mV/div ~ 10V/div
1-2-5 increments
The vertical scale indicator for
each channel on the bottom of
the display changes
accordingly.
