GW Instek GDS-2000A Series User Manual

QUICK REFERENCE
43
Menu Tree / Operation Shortcuts
Convention
For all menu trees, the bottom menu keys are
shown as grey icons and side menu keys are
shown in white. All menu tree operations are
shown in order from top to bottom.

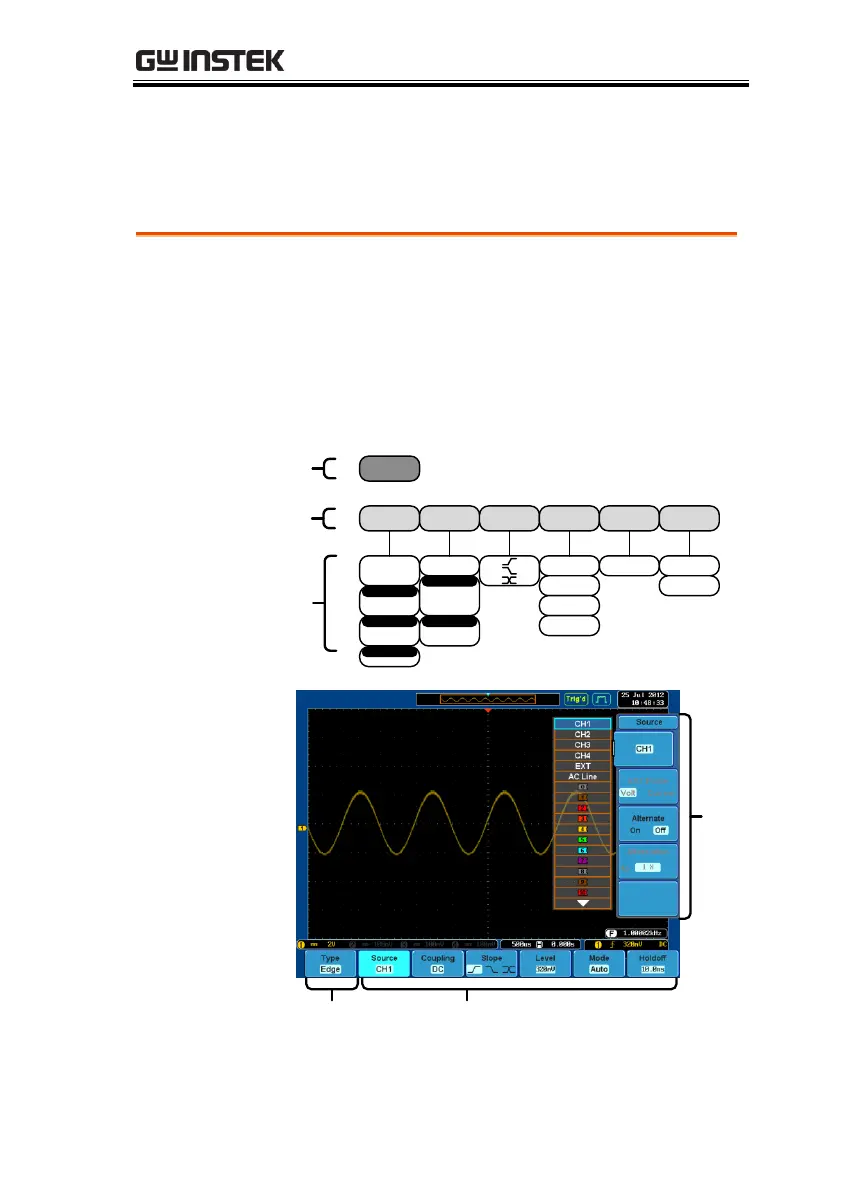

Below is an example of the menu tree operation for
the trigger source menu and a comparison to the
operation on the DSO screen.
Menu Tree
Type
Edge
Source Coupling Slope Level Mode Holdoff
CH1~ CH4
EXT
AC Line
EXT Probe
Volt
Current
DC
AC
0.00V~ XX.XV
Set to TTL
1.4V
Set to ECL
-1.3V
Set to 50%
Auto
Normal
00.0ns~
Xxx.xxns
Set to
Minimum
EXT Probe
On
Off
Alternate
1
2
3
1mX ~ 1kX
Attenuation
Off
HF
LF
Reject
On
Off
Noise Reject
On Screen Menu
1 2
3
