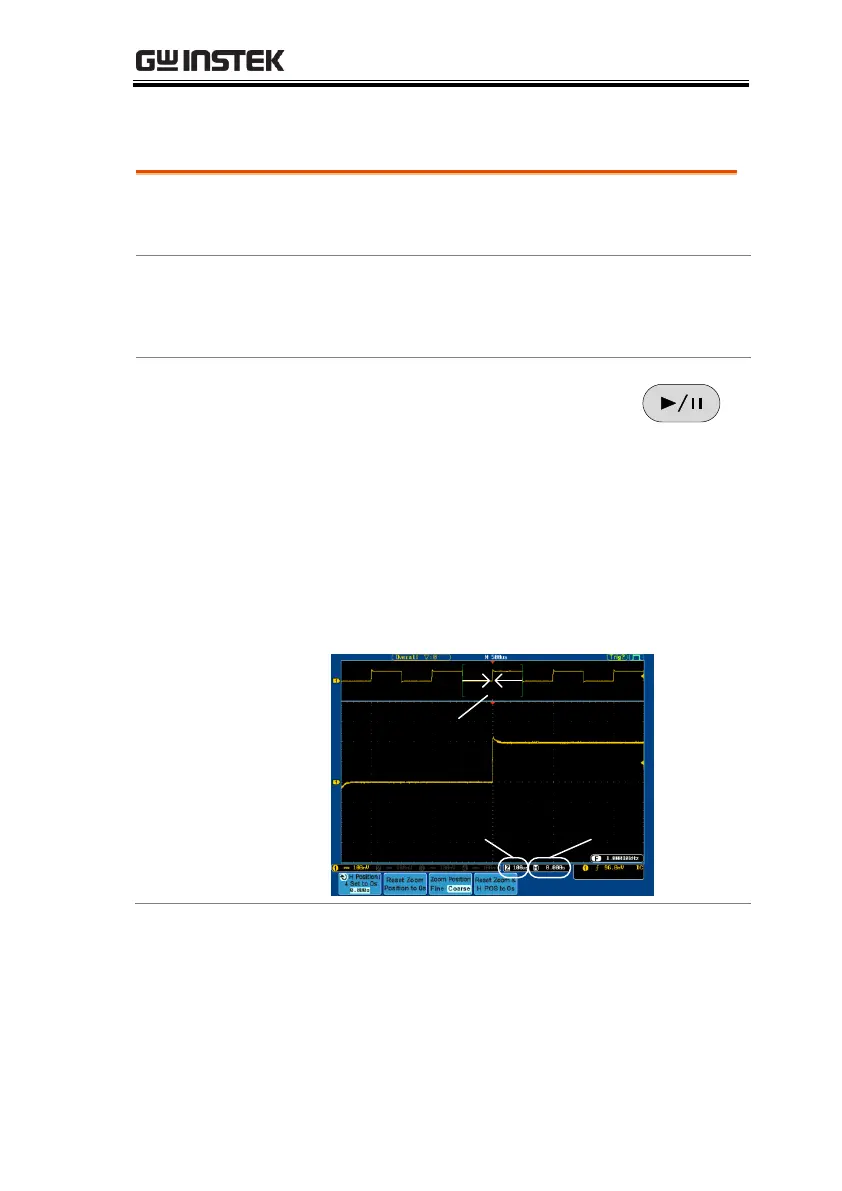

CONFIGURATION
135
Play / Pause
Background
The Play/Pause key can be used to play through
signals in Zoom mode.
Note
If the Segmented memory function is turned on,
pressing the play pause key will play through
memory segments. See page 117 for information.
Panel Operation
1. Press the Play/Pause menu key.
2. The scope will go into the Zoom Play mode and
begin to scroll through the acquisition (from left
to right).
The full-record length waveform will be shown
in the top and the zoomed section will be
shown in the bottom.
Zoom time
base
Horizontal
position
Zoom
window
