GW Instek GDS-2000A Series User Manual

GDS-2000A Series User Manual
100
Edit F(x)
Background
The f(x) source is a user-defined math function that
can be used as a source waveform for the FFT or
advanced math functions. The f(x) source
waveform is created by the addition, subtraction,
multiplication or division of two input waveforms.

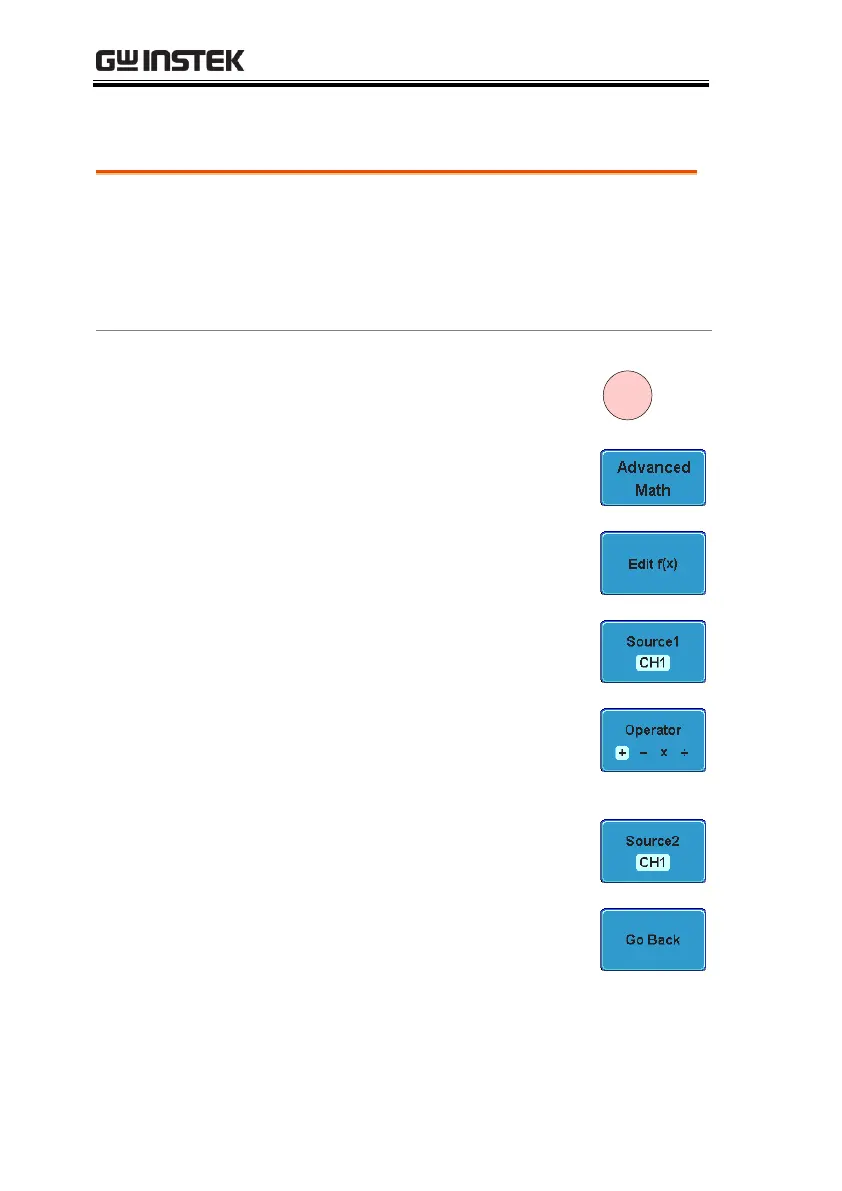

Panel Operation
1. Press the Math key.
M
MATH
2. Press Advanced Math from the
bottom menu.
3. Press the Edit f(x) key to edit the
f(x) waveform.
4. Select Source 1 from the side menu
Range
CH1~4
5. Press Operator to choose the math
operation.
Range
+, -, ×, ÷
6. Select Source 2 from the side menu.
Range
CH1~4
7. The f(x) source waveform is now
set, press Go Back to return to the
Advanced Math menu.
