GW Instek GDS-2000A Series User Manual

MEASUREMENT
99

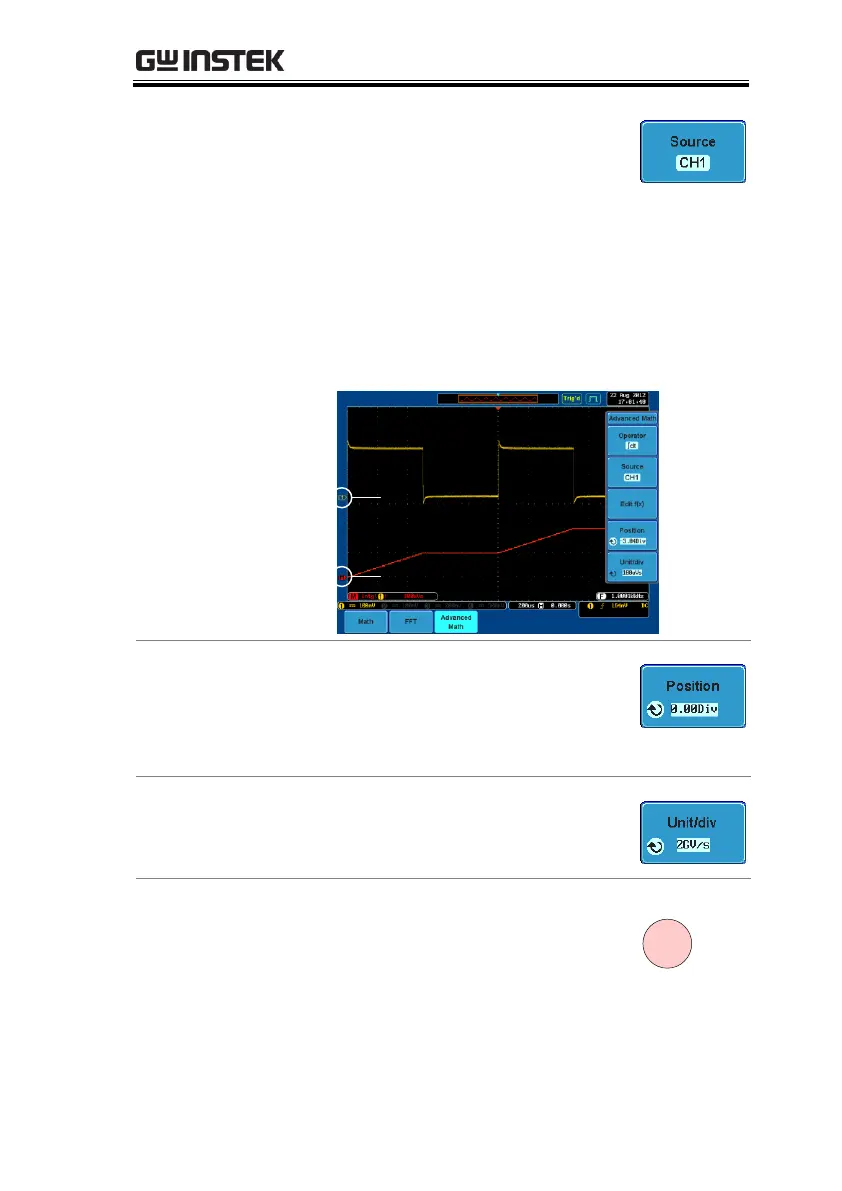

4. Select the Source from the side
menu.
Range
CH1~4, Ref~4, f(x)*
*the f(x) source is set with the Edit F(x)
function, page 100.
5. The math result appears. For the
differential/integral operations, the unit/div
scale changes accordingly.
Advanced Math
Source
Position and Unit
To move the math waveform
vertically, press Position and use the
Variable knob.
Range
–12.00 Div ~ +12.00 Div
To select the vertical scale of the math
waveform, press Unit/div and use the
Variable knob.
Clear Advanced
Math
To clear the advanced math result
from the display, press the Math key
again.
M
MATH
