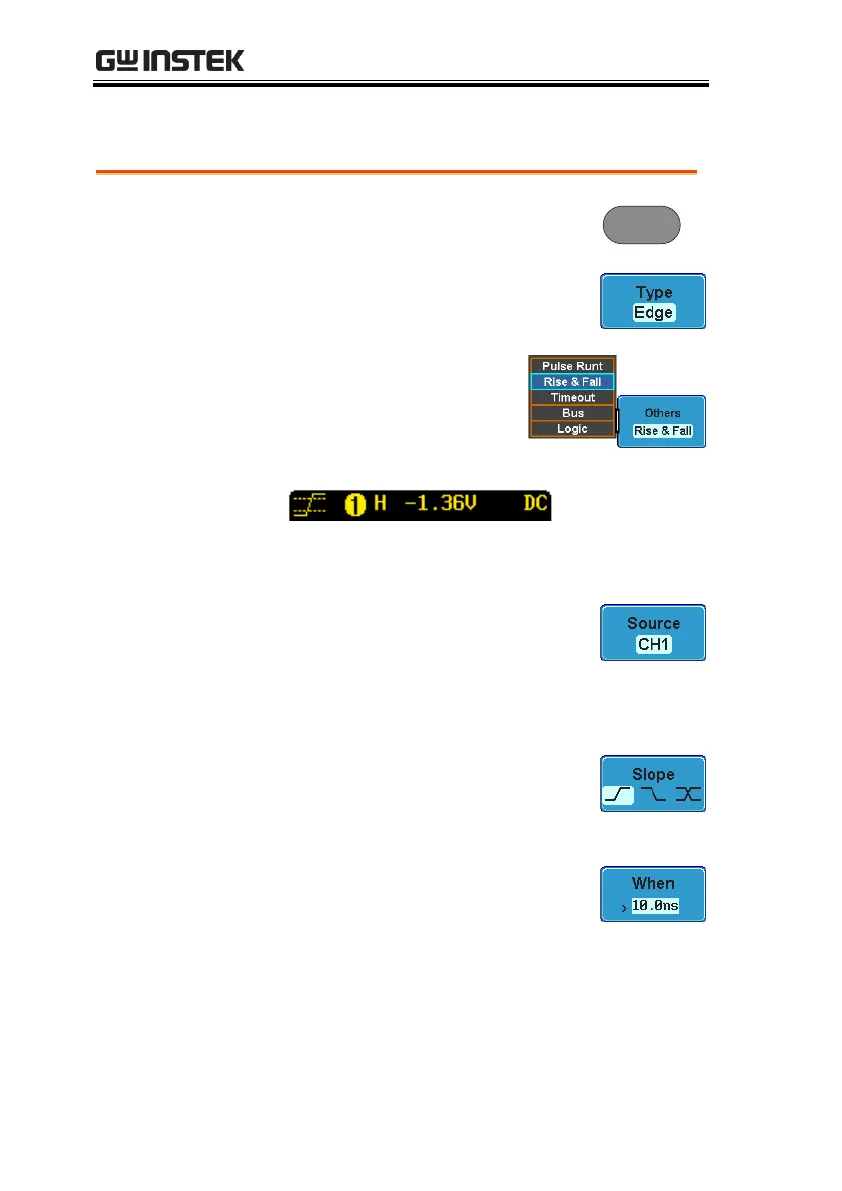

GDS-2000A Series User Manual
160
Using Rise and Fall (Slope) Trigger
Panel Operation
1. Press the trigger Menu key.
Menu
2. Press the Type key from the lower
bezel menu.
3. Select Others
Rise and
Fall from the side menu.
The Rise and Fall indicator
appears at the bottom of
the display.
From left: Slope, source, high/low threshold,
threshold level, coupling
4. Press Source from the lower menu.
Use the side menu to select a source.
Range
Channel 1 ~ 4
5. Press Slope from the bottom menu
to toggle the slope.
Range
Rising edge, falling edge, either
6. Press When from the lower menu.
Then use the side menu to select the logic
conditions and true or false status.
Condition
> , < , = , ≠
Width
10ns ~ 10s
