GDS-2000A Series User Manual
162

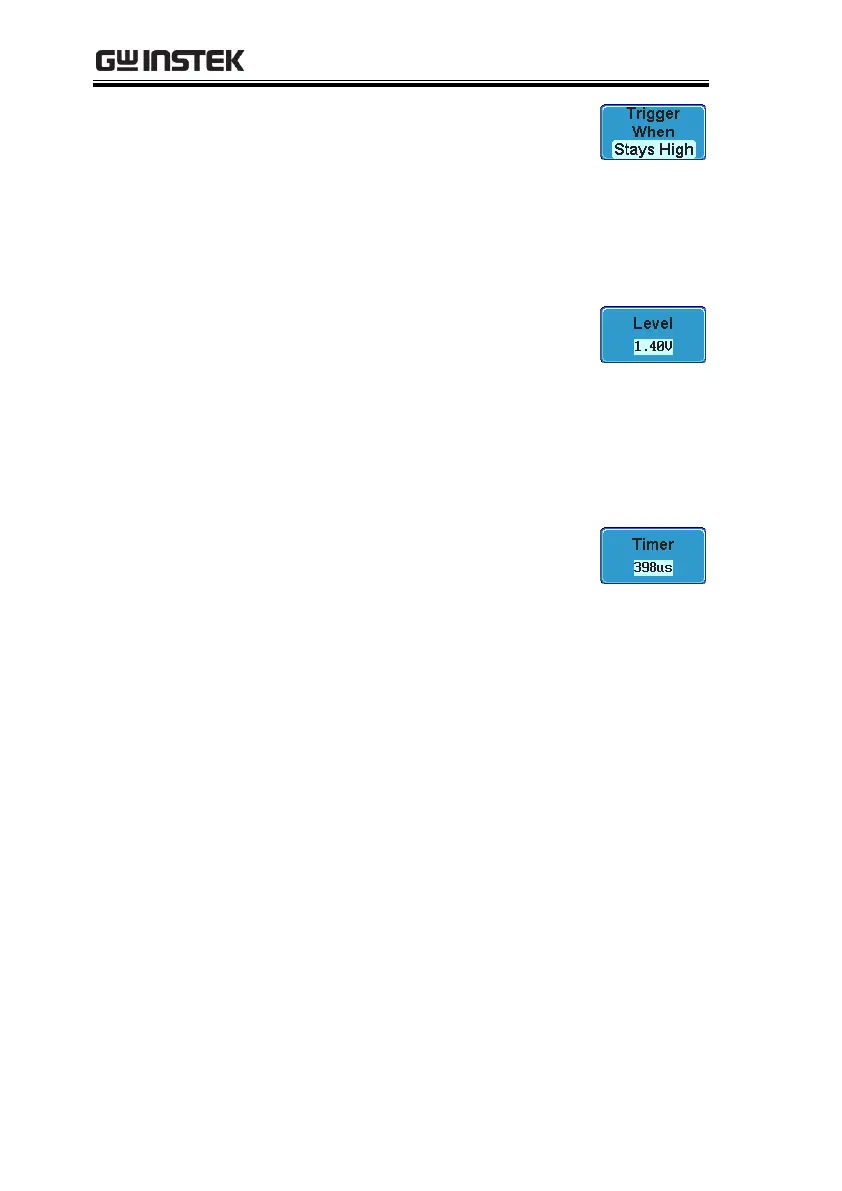

5. Press Trigger When from the lower
menu.
Then use the side menu to select trigger
conditions.
Condition
Stays High, Stays Low, Either
6. Press Level from the lower bezel to
set the trigger level.
Range
-XXV~XXV
Set to TTL 1.4V
Set to ECL -1.3V
Set to 50%
7. Press Timer from the lower bezel to
set the timer time.
Range
-10ns~10.0S
