GW Instek GDS-2000A Series User Manual

GDS-2000A Series User Manual
34
POSITION
CH1
Demo
x1
x10
X
10
X
1
CH1
Demo

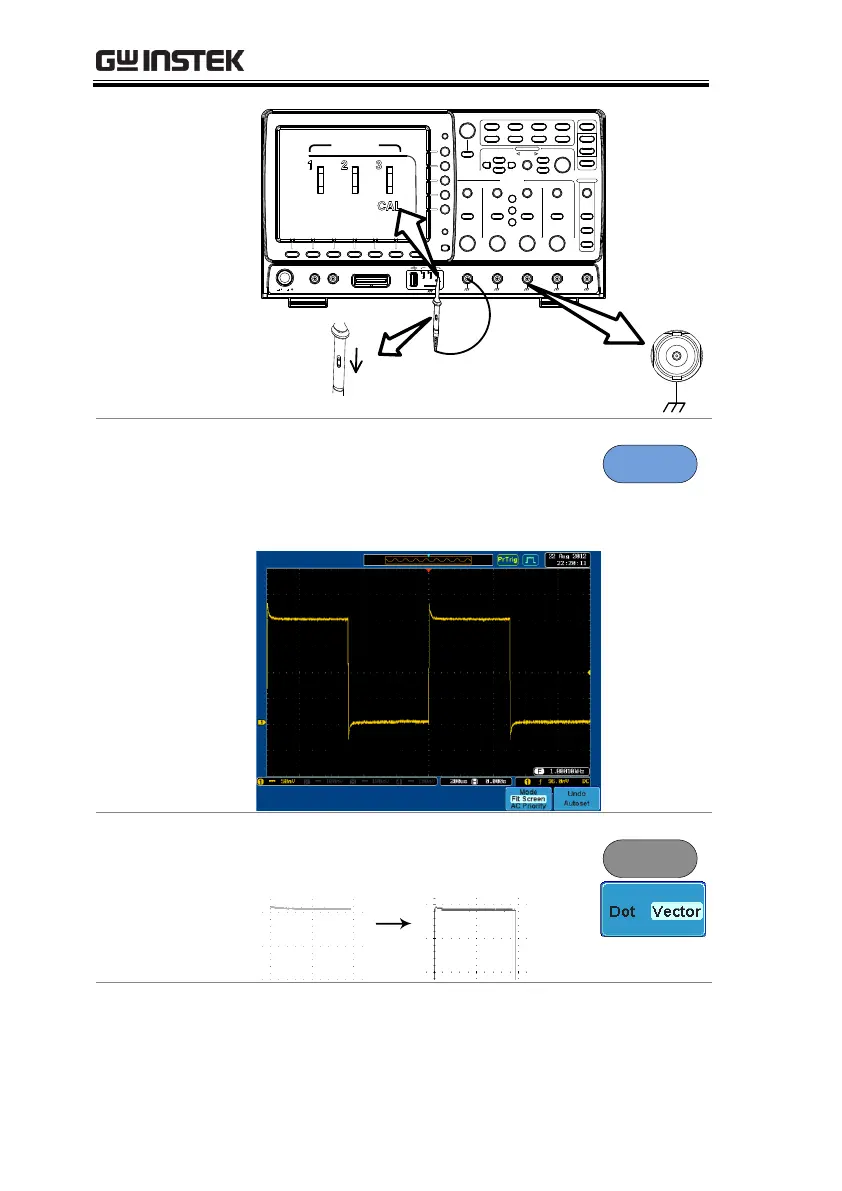

6. Capture Signal
(Autoset)
Press the Autoset key. A square
waveform appears on the center of
the screen. For Autoset details, see
page 66.
Autoset
7. Select Vector
Waveform
Press the Display key, and set the
display to Vector on the bottom menu.
Display
8. Compensate
Probe
Turn the adjustment point on the probe to make
the square waveform edge flat.
