GW Instek GDS-2000A Series User Manual

MEASUREMENT
75
-Pulses
Measures the number of
negative pulses.
+Edges
Measures the number of
positive edges.
-Edges
Measures the number of
negative edges.

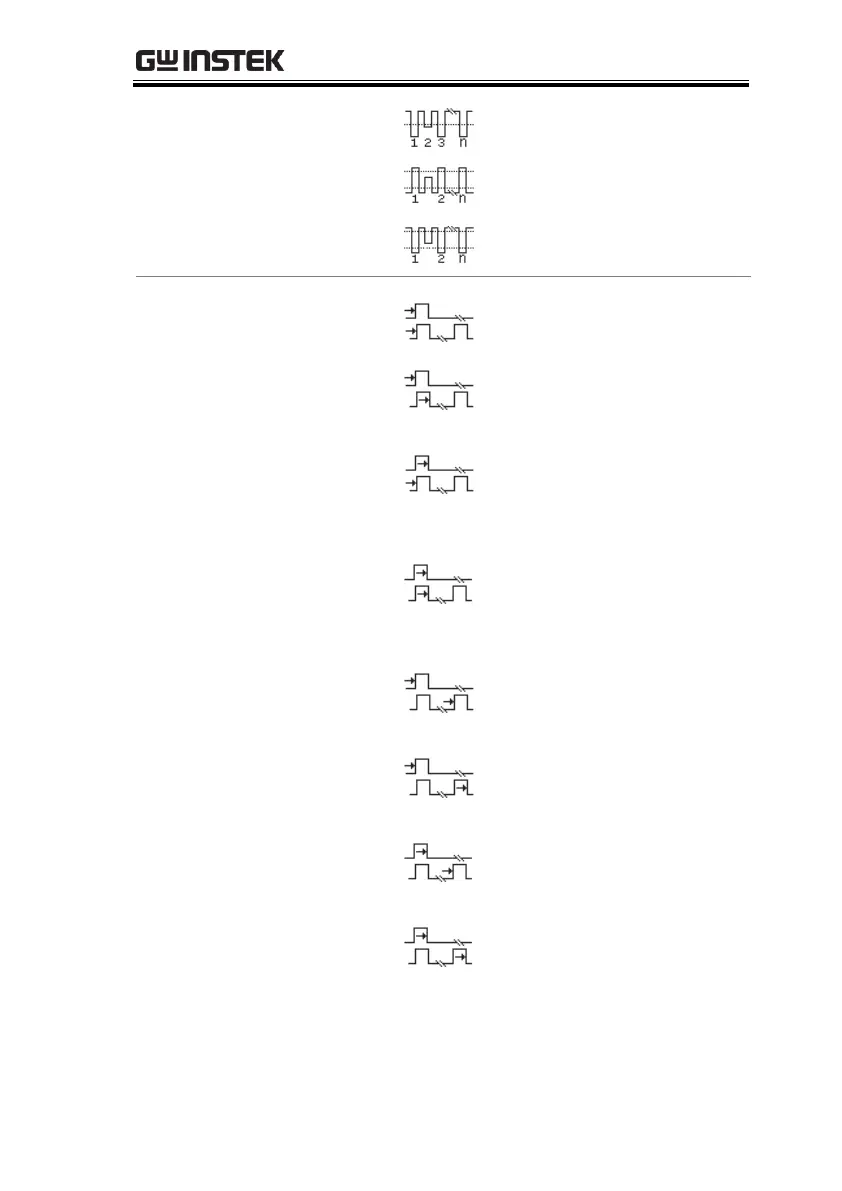

Delay
Measurement
FRR
Time between:
Source 1 first rising edge and
Source 2 first rising edge.
FRF
Time between:
Source 1 first rising edge and
Source 2 first falling edge.
FFR
Time between:
Source 1 first falling edge
and Source 2 first rising
edge.
FFF
Time between:
Source 1 first falling edge
and Source 2 first falling
edge.
LRR
Time between:
Source 1 first rising edge and
Source 2 last rising edge.
LRF
Time between:
Source 1 first rising edge and
Source 2 last falling edge.
LFR
Time between:
Source 1 first falling edge
and Source 2 last rising edge.
LFF
Time between:
Source 1 first falling edge
and Source 2 last falling
edge.
