H3C S5130S-EI series Installation Guide

2-10
2. Align one mounting bracket with the screw holes at the mounting position. Use M4 screws to
attach the mounting bracket to the chassis. See Figure2-3 for installing mounting bracket A,
Figure2-4 and Figure2-5 for installing mounting bracket B, and Figure2-6 for installing mounting
bracket C, D, and E (C as an example).
M4 screws are provided only for switches shipped with mounting brackets.
An optional mounting bracket kit contains M4 screws.
3. Repeat step 2 to attach the other mounting bracket to the chassis.

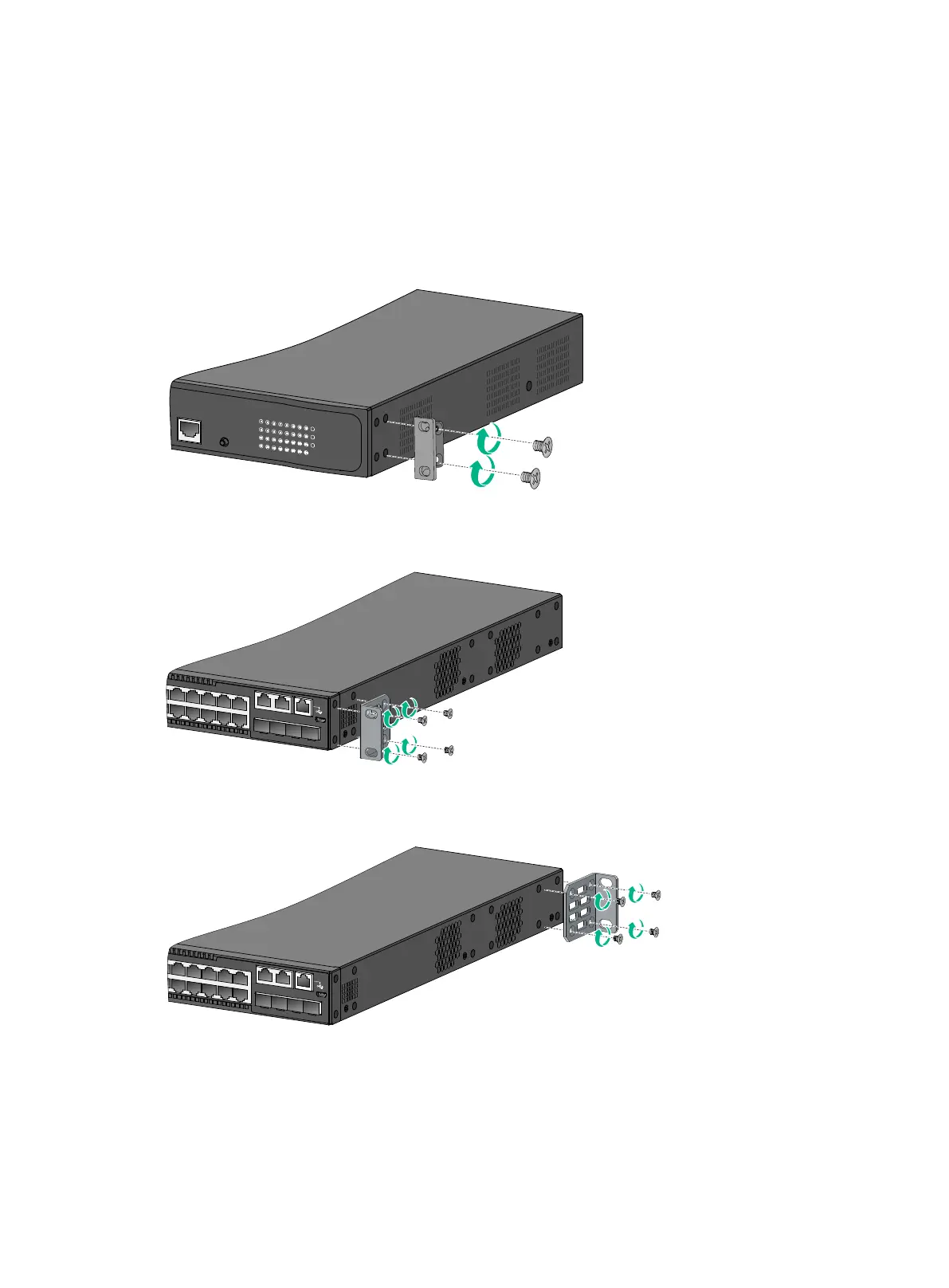

Figure2-3 Attaching mounting bracket A (S5130S-28P-HPWR-EI switch)
Figure2-4 Attaching mounting bracket B to the port side mounting position (S5130S-52F-EI
switch)
Figure2-5 Attaching mounting bracket B to the power supply side mounting position
(S5130S-52F-EI switch)

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
