Quick Start
H3C S5500-EI Series Ethernet Switches
Chapter 1 Product Overview
1-35
Table 1-9 Description of the LED for each extended module slot
LED Mark Status Description
Gree
n
The port connection is
normal. The LED
flashes at a high
frequency when the
port is sending or
receiving data.
LED for
extended
module slot
This
LED is
not
affected
by the
Mode
button.
OFF
The port is not
connected.
1.11 CX4 Cable
You can use a CX4 cable to connect the CX4 port on the rear
panel of the S5500-EI series to another CX4 port.

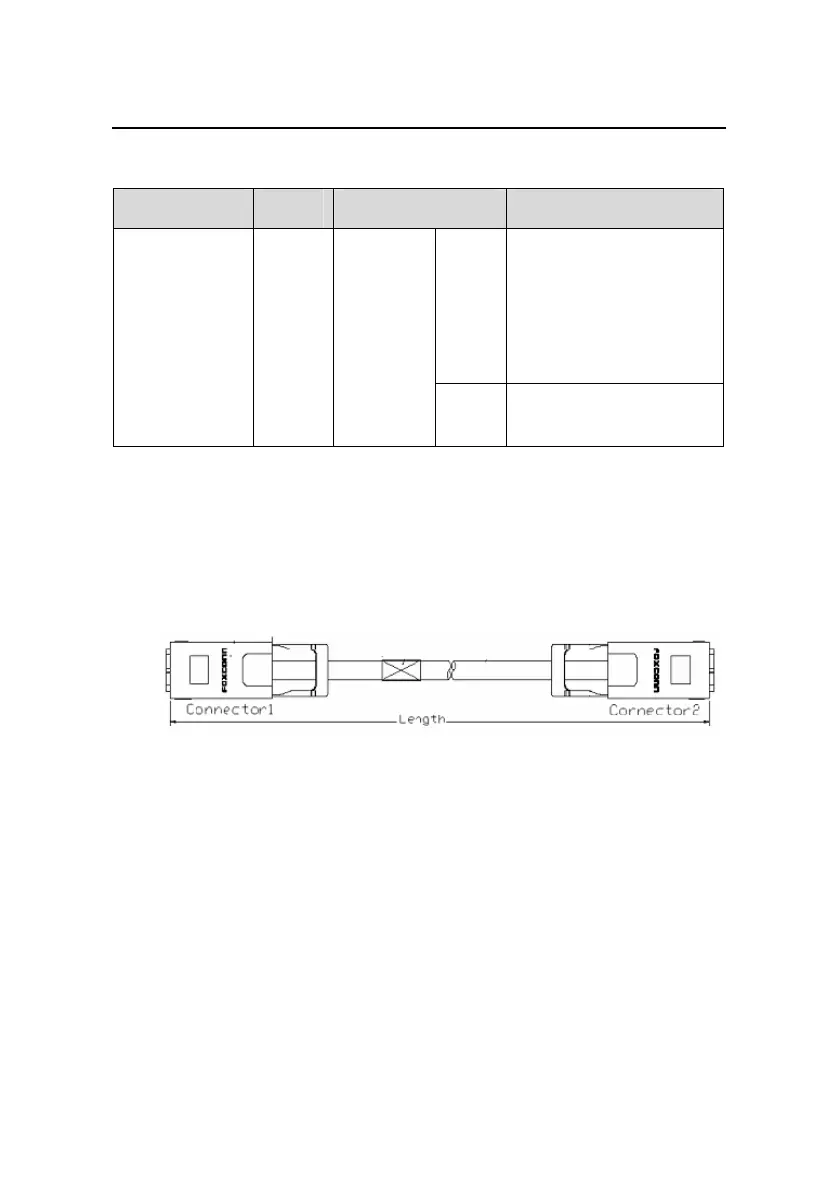

Figure 1-1 CX4 cable
The following three types of CX4 cables are available:
z 50 cm (19.7 in.): The connectors at both ends of the cable
are bayonet connectors.
z 100 cm (39.4 in.): The connectors at both ends of the cable
are bayonet connectors.
z 300 cm (118.1 in.): The connectors at both ends of the cable
are bayonet connectors.
