Chapter 3 Installation
3-10
5) Hold the bottom of the switch with one hand and the front
part of the switch with the other hand, and push the switch
into the cabinet gently, as shown in
Figure 3-8.
Front square-holed bracket
Front mounting ear Rear panel
Screw 2
Rear square-holed
bracket
Rear mounting ear
Screw 1
Screw 1: Used to bear the weight
Screw 2: Used to fix rear mounting ears to rear brackets

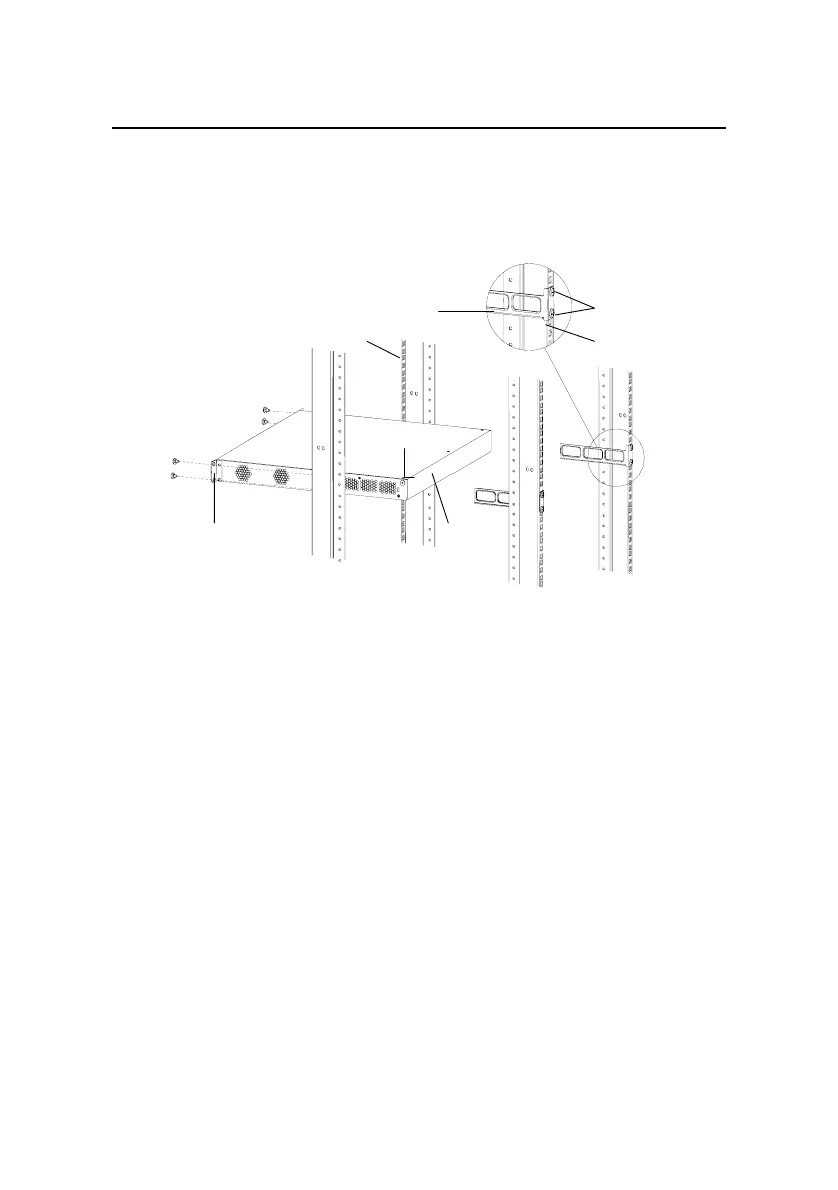

Figure 3-8 Fix front and rear mounting ears
After the switch is pushed into the cabinet, ensure that the upper
edge of rear mounting ears is tightly contacted with the load-bearing
screw, as shown in
Figure 3-9.
