Chapter 3 Installation
3-33
2) Loosen the mounting screws of the blank panel on the read
panel of the switch with a screwdriver and remove the blank
panel.
3) Hold the fastening screws on the front panel of the XFP
interface module, and gently push the XFP interface module
in along the guide rails until the XFP interface module is in
close contact with the switch.

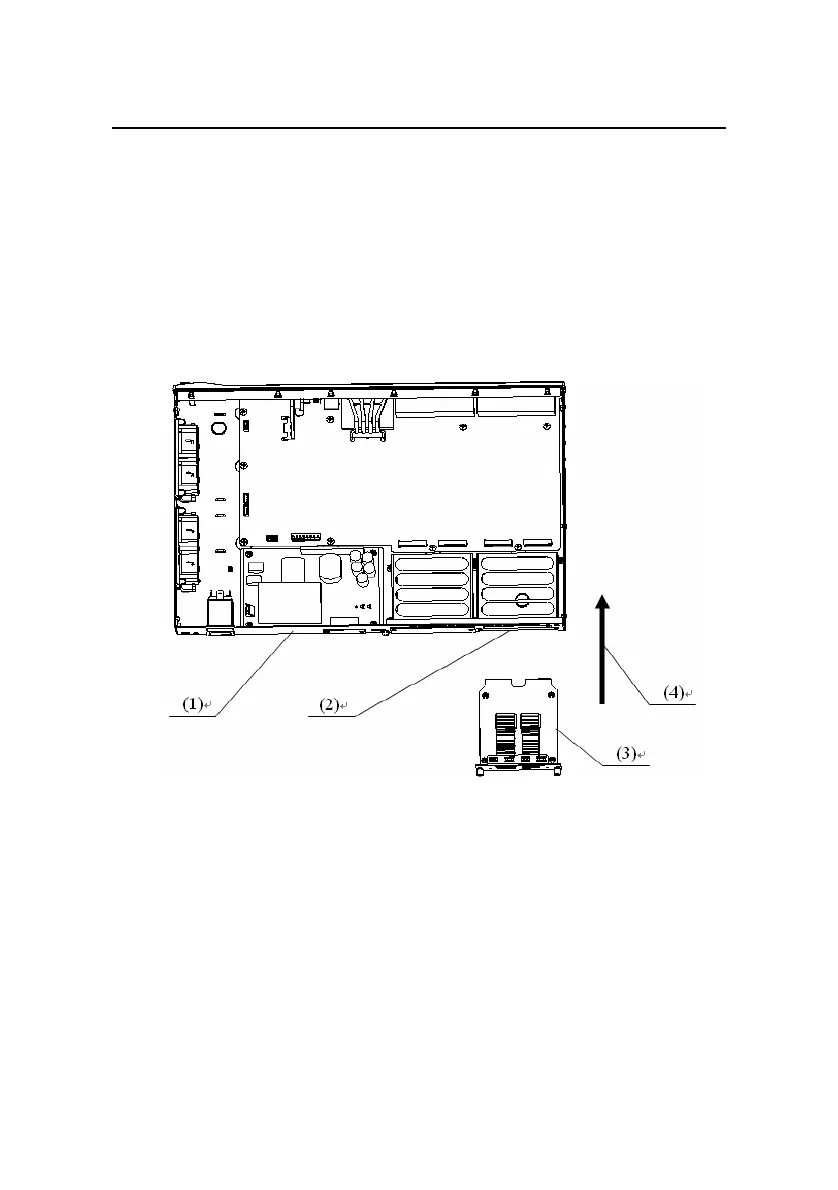

(1) Switch (2) Optional module slot
(3) XFP interface module (4) Push-in direction
Figure 3-35 Install a 10 GE XFP interface module
Step 4: Tighten the fastening screws with a screwdriver to fix the
XFP interface module.
