H3C S5500-EI Series User Manual

Quick Start
H3C S5500-EI Series Ethernet Switches
Chapter 3 Installation
3-14
4) Hold the two sides of the switch and slide it gently along the
guide rails into the cabinet until it is located in a proper
position, as shown in
Figure 3-13. Ensure that the bottom
side of the guide rails and the switch are in close contact.
Front panel

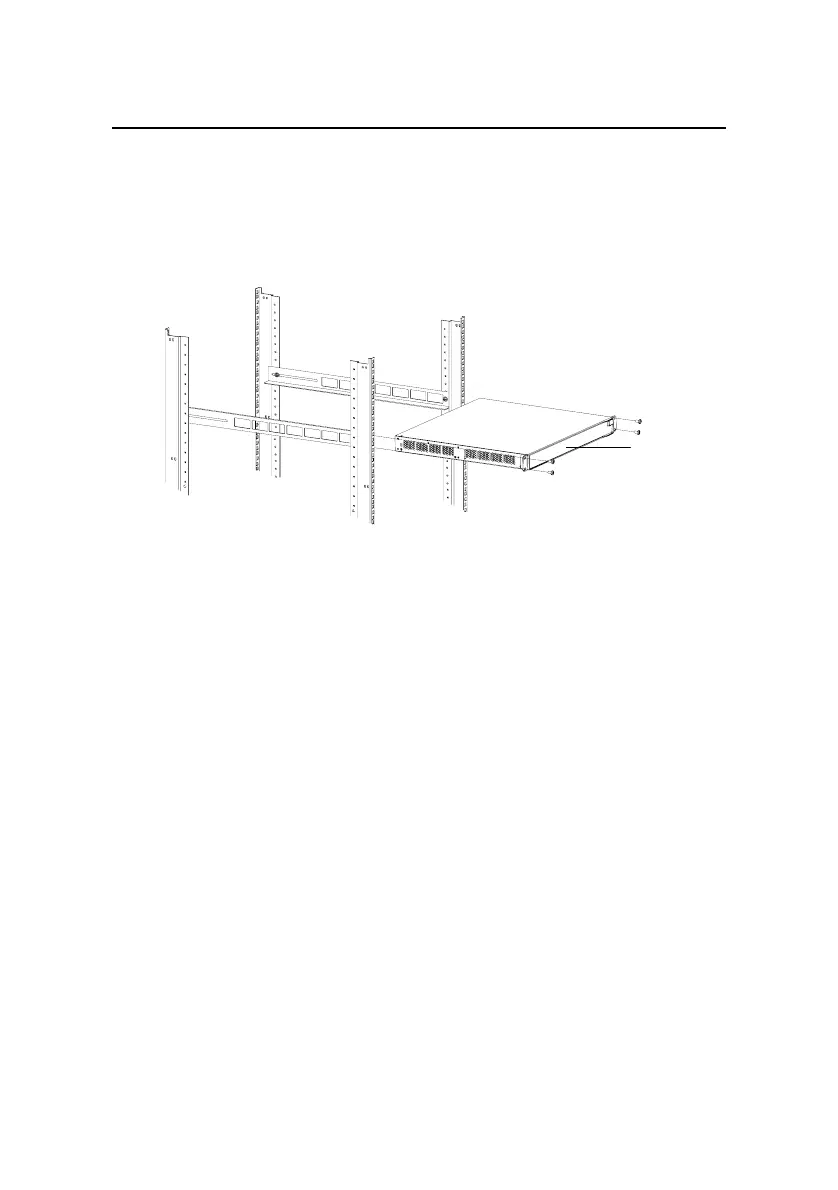

Figure 3-13 Install front mounting ears and guide rails
5) Fix the other end of front mounting ears to the front brackets
of the cabinet with M6 screws and captive nuts and ensure
that the front mounting ears and guide rails have fixed the
switch in the cabinet securely, as shown in
Figure 3-14.
