H3C S5500-EI Series User Manual

Quick Start
H3C S5500-EI Series Ethernet Switches
Chapter 3 Installation
3-27
(1)
(5)
(1)
(2)
(3)
(4)
(1)
(5)
(1)
(2)
(3)
(4)
(1) AC power socket (2) Grounding terminal
(3) Protection grounding cable (4) Ground
(5) Angle steel

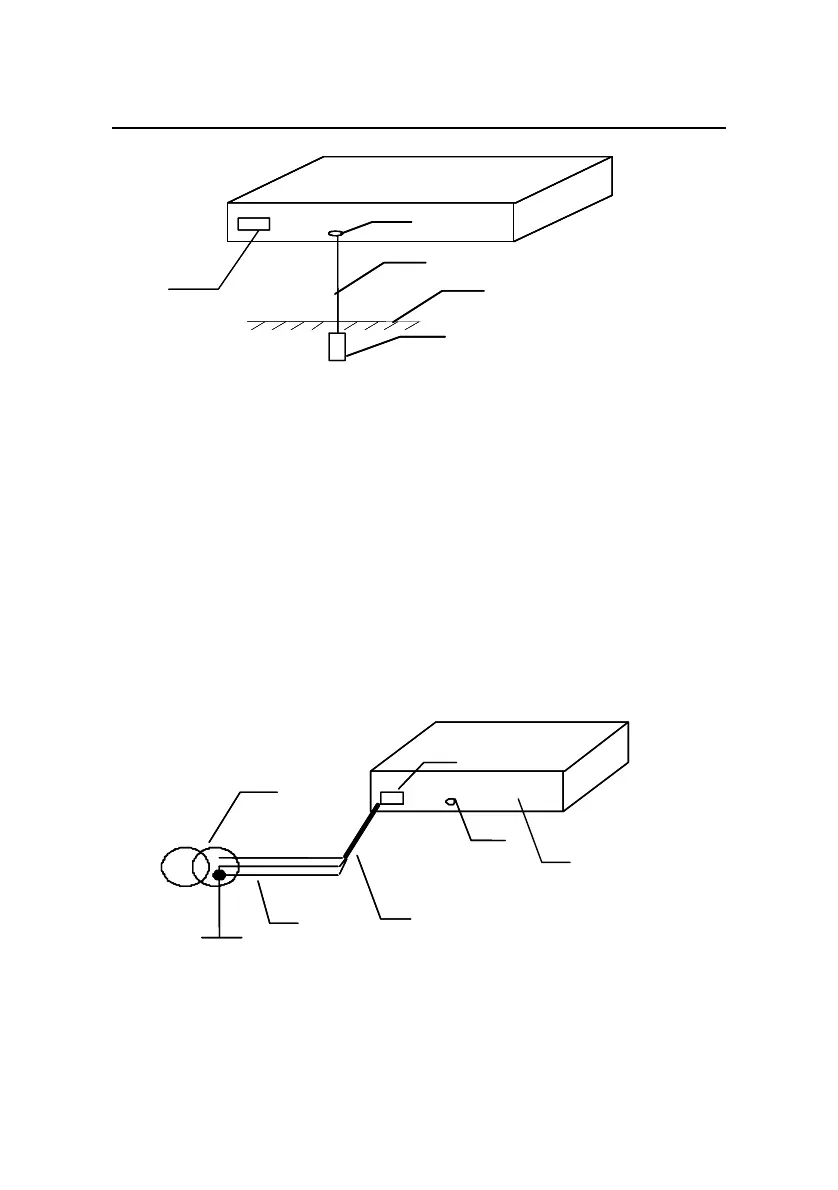

Figure 3-27 Ground the switch by burying the grounding body
into the earth
z For an AC-powered switch, if neither of the
above-mentioned two conditions is available, ground the
switch through the PE wire of the AC power supply. In this
case, make sure this PE wire is well connected to the ground
at the power distribution room or AC transformer side.
(2)
(1)
(2)
(3)
(4)
(5)
(6)
(1) AC power
socket
(2) Grounding terminal (3) Power transformer
(4) PE wire (5) Three-core AC power cable (6) Ethernet Switch
Figure 3-28 Ground through an AC PE wire
