2) Take out the screws which are packed together with the front
mounting ears, and fix one end of mounting ears to the
switch, as shown in
Figure 3-4.
Front panel

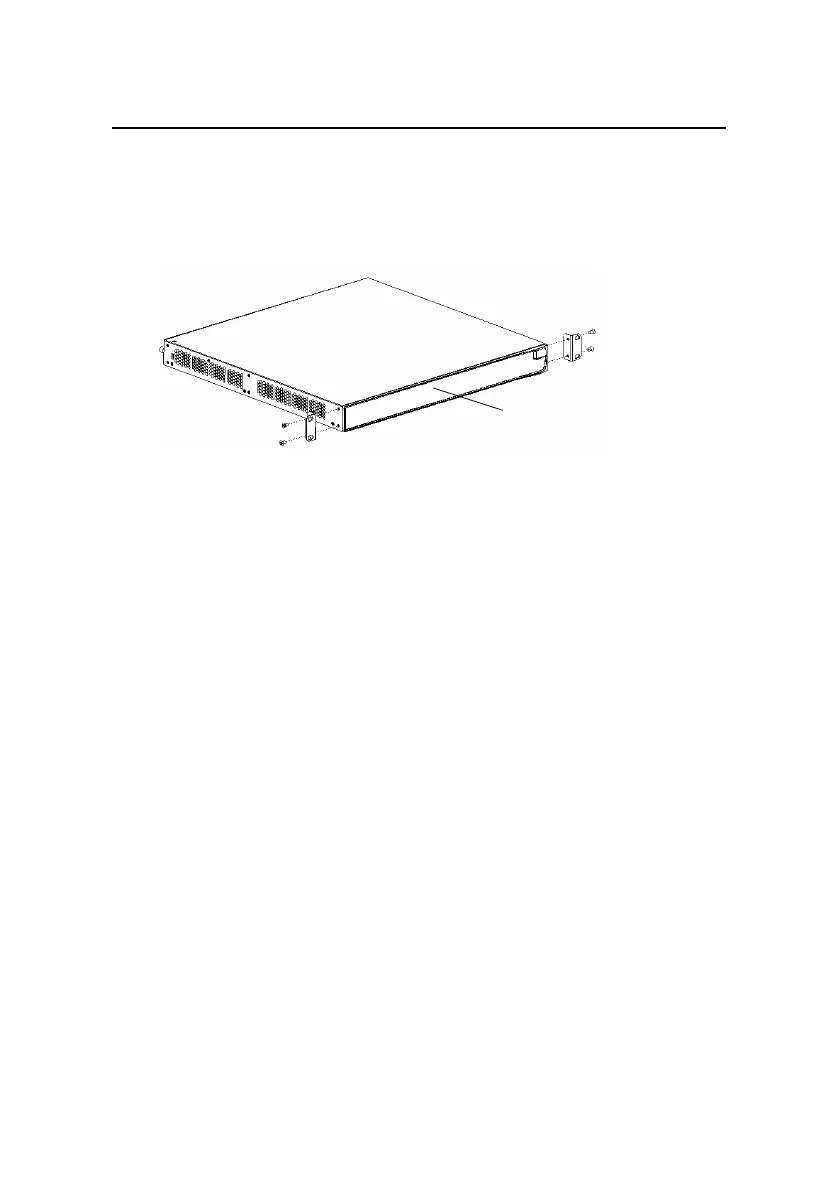

Figure 3-4 Fix front mounting ears (1)
3) Place the switch horizontally in a proper position, and fix the
other end of mounting ears to the front brackets with screws
and captive nuts, as shown in
Figure 3-5.
