Chapter 3 Installation
3-8
3.1.5 Using Front and Rear Mounting Ears
Follow these steps to install the switch into a 19-inch standard
cabinet:
1) Wear an ESD-preventive wrist strap to check the grounding
and stability of the cabinet.
2) Take out the screws which are packed together with the front
mounting ears, and fix one end of mounting ears to the
switch, as shown in
Figure 3-4.
3) Take out the load-bearing screws (packed together with the
rear mounting ears) and place them in a proper position on
the sides of the switch, as shown in
Figure 3-6.
Front panel
Screw 1
Front mounting ear
Three installation locations for screw 1 (select one according to the actual requirement)
Front
mounting ear
Screw 1
Front panel
Screw 1
Front mounting ear
Three installation locations for screw 1 (select one according to the actual requirement)
Front
mounting ear
Screw 1
Screw 1: Load-bearing screw

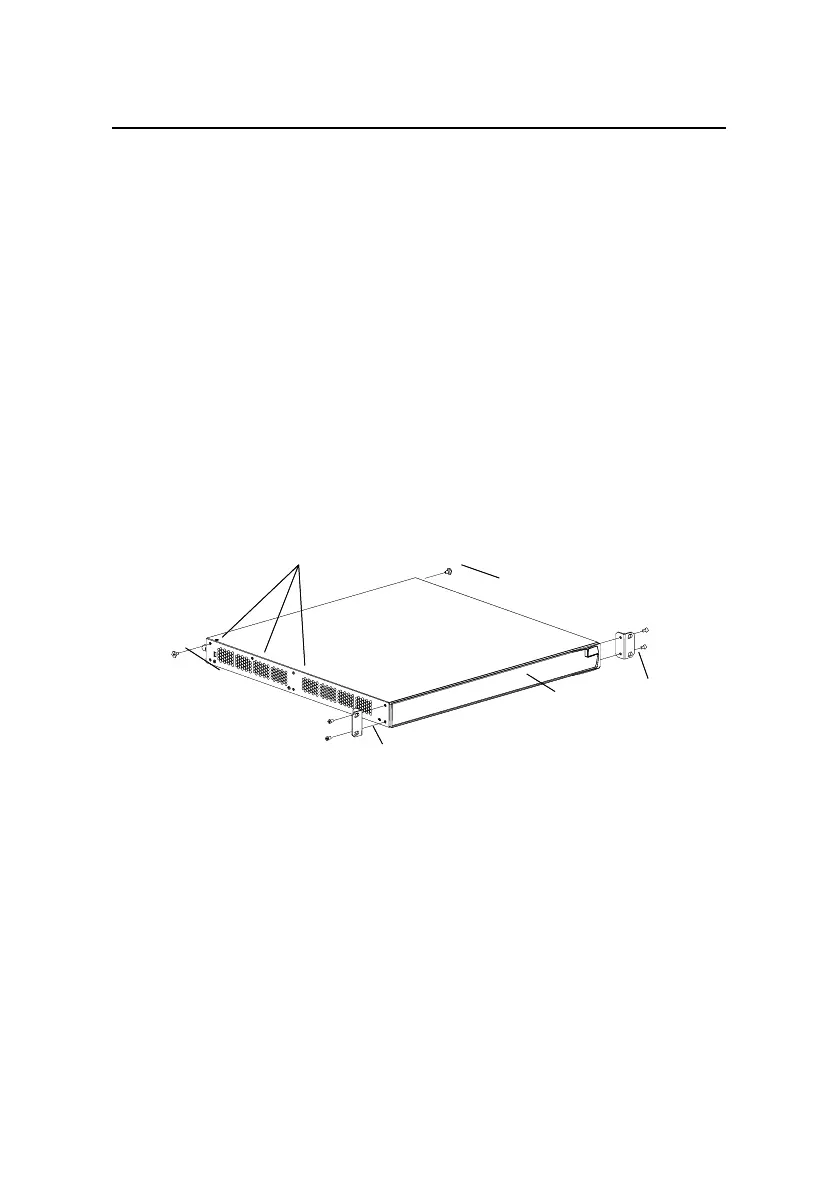

Figure 3-6 Fix front mounting ears and load-bearing screws
