H3C S5500-EI Series User Manual

Quick Start
H3C S5500-EI Series Ethernet Switches
Chapter 3 Installation
3-7
Front panel
Front m ounting ear
Front square-holed bracket
Front
mounting ear
Front panel
Front m ounting ear
Front square-holed bracket
Front
mounting ear

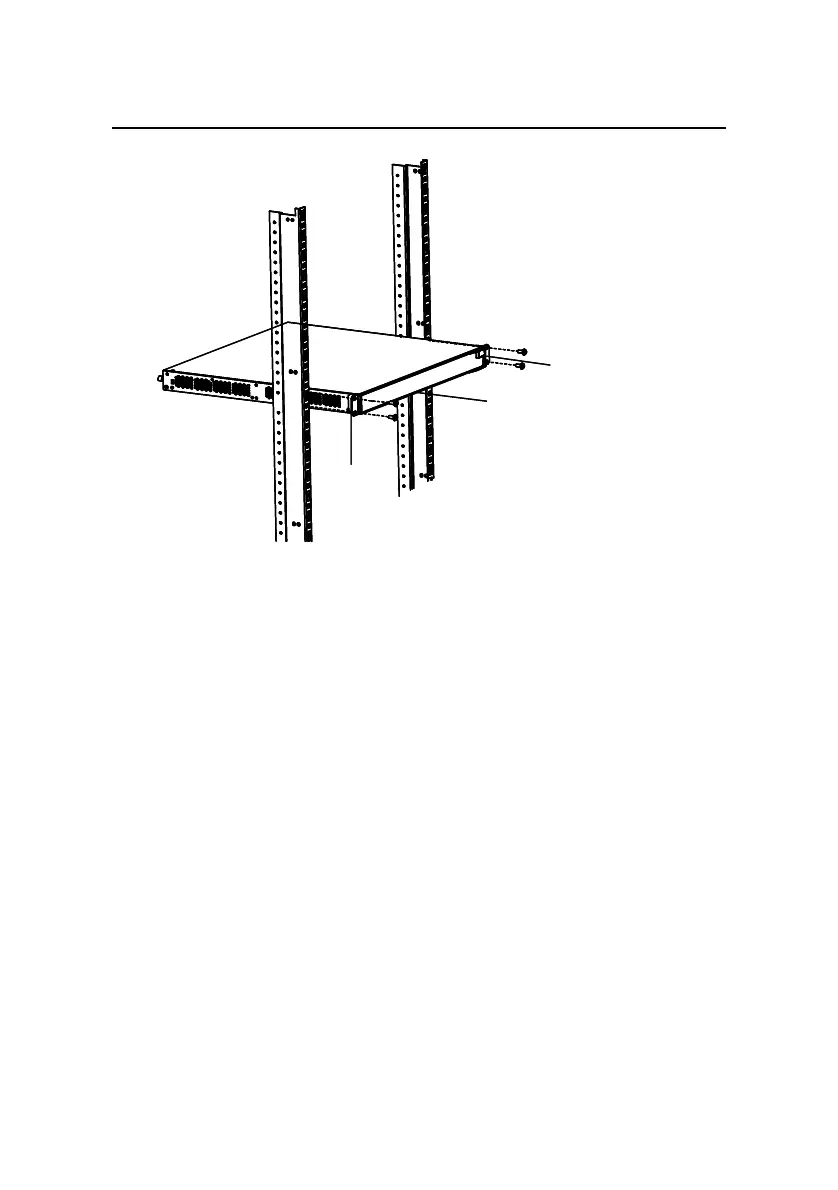

Figure 3-5 Fix front mounting ears (2)
3.1.4 Using Front Mounting Ears and a Tray
Follow these steps to install the switch into a 19-inch standard
cabinet:
1) Wear an ESD-preventive wrist strap to check the grounding
and stability of the cabinet.
2) Fix the delivered tray horizontally in a proper position.
3) Take out the screws which are packed together with the front
mounting ears, and fix one end of mounting ears to the
switch, as shown in
Figure 3-4.
4) Place the switch on the tray horizontally, slide the tray into
the cabinet, and fix the other end of mounting ears to the
front brackets with crews and captive nuts, as shown in
Figure 3-5.
