20
IMPORTANT:
Orient the grounding cable as shown in Figure 24 so you can easily install or remove the expansion
car
d.

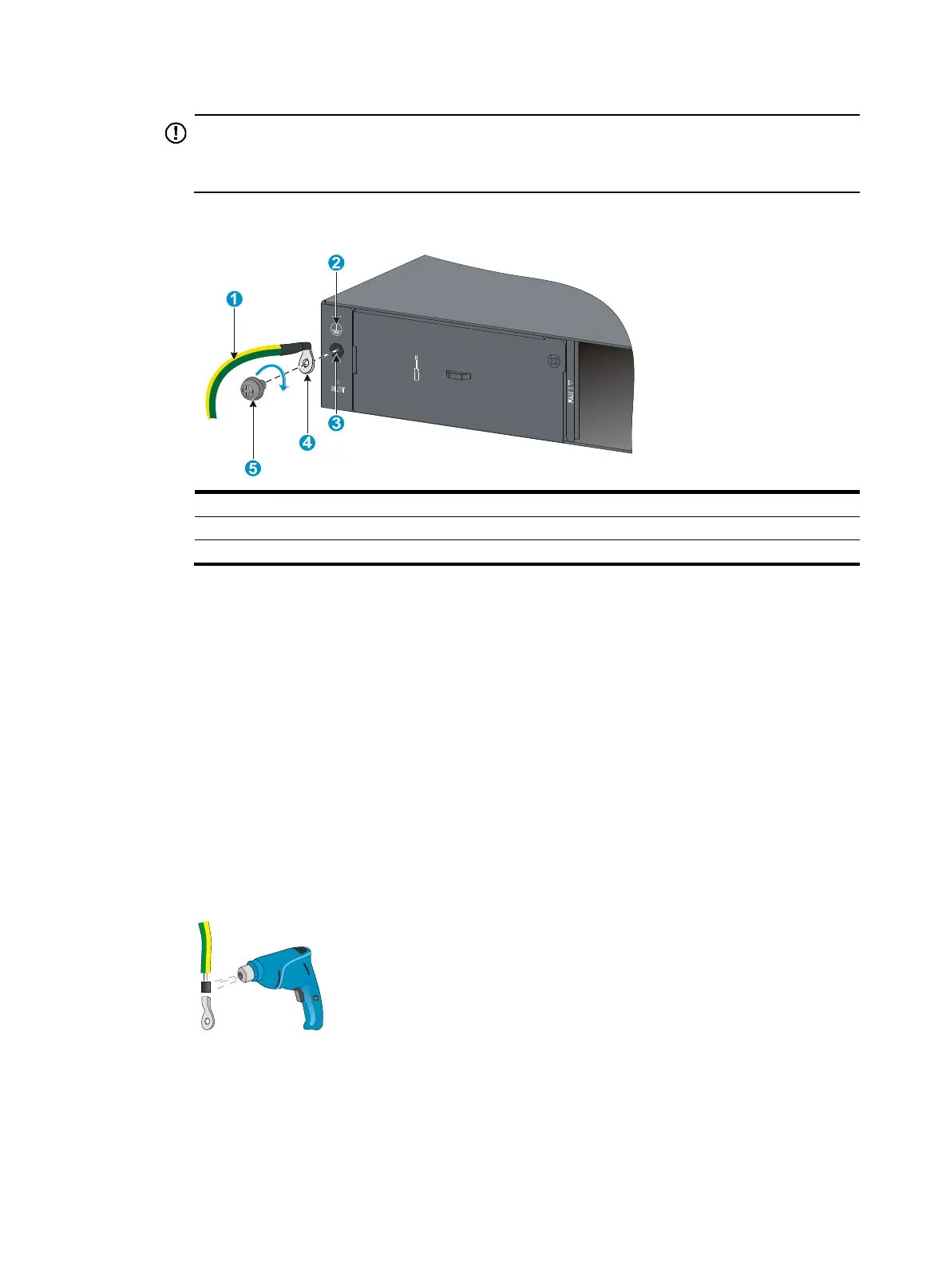

Figure 24 Connecting the grounding cable to the chassis
(1) Groundin
cable (2) Groundin
si
n
(3) Grounding hole (4) Ring terminal
(5) Groundin
screw
3. Verify that the grounding cable has been securely connected to the rear grounding point.
Connecting the grounding cable to a grounding strip (S5560-30C-PWR-EI and S5560-54C-PWR-EI)
1. Remove the hex nut of a grounding post on the grounding strip.
2. Cut the grounding cable to a length required for connecting to the grounding strip.
3. Attach a ring terminal to the grounding cable:
a. Use a wire stripper to strip 5 mm (0.20 in) of insulation off the end of the grounding cable.
b. Slide the heat-shrink tubing onto the cable and insert the bare metal part into the end of the ring
terminal.
c. Use a crimper to secure the metal part of the cable to the ring terminal.
d. Slide the heat-shrink tubing down the cable until the tube covers the joint.
e. Use a heat gun to shrink the tubing around the cable.
Figure 25 Attaching a ring terminal to the grounding cable
4. Connect the ring terminal to the grounding post of the grounding strip, and fasten it with the
removed hex nut.
