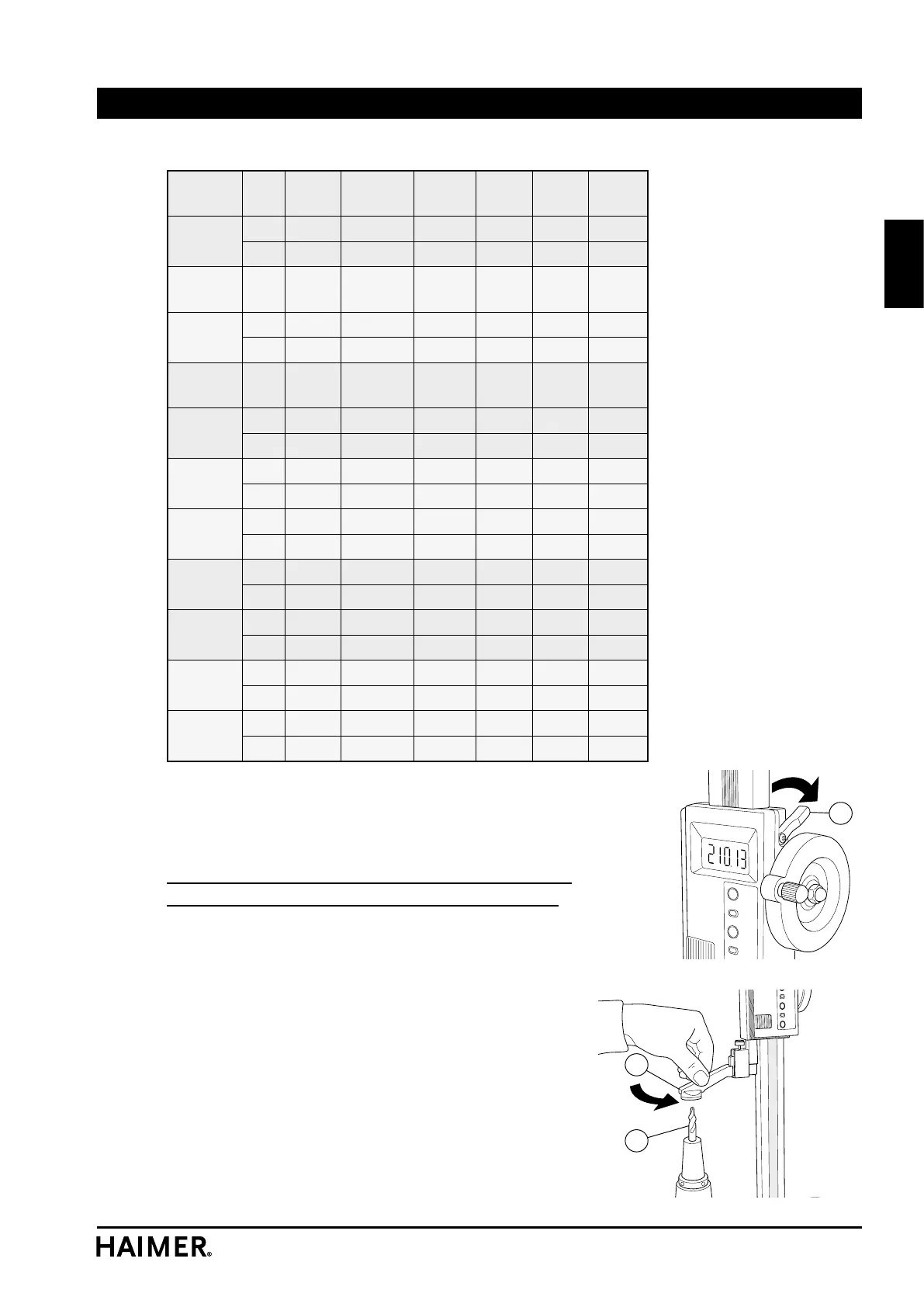

correction allowance can be found in the table.
Clam-
ping Ø
mm 4 5 6 8 10 12
Correcti-
on value
mm 0,15 0,18 0,18 0,2 0,15 0,14
Inch 0,006 0,007 0,007 0,008 0,006 0,006
Clam-
ping Ø
mm 14 16 18 20 25 32
Correcti-
on value
mm 0,12 0,14 0,15 0,13 0,21 0,16
Inch 0,005 0,006 0,006 0,005 0,008 0,006
Clam-
ping Ø
mm 10S 12S 14S 16S 18S 20S
Correcti-
on value
mm 0,17 0,13 0,18 0,16 0,18 0,17
Inch 0,007 0,005 0,007 0,006 0,007 0,007
Clam-
ping Ø
mm 3,175 4,763 6,35 7,938 8,525 11,113
Inch 1/8 3/16 1/4 5/16 3/8 7/16
Correcti-
on value
mm 0,13 0,17 0,18 0,2 0,2 0,14
Inch 0,005 0,007 0,007 0,008 0,008 0,006
Clam-
ping Ø
mm 12,7 15,875 19,05 25,4 31,75
Inch 1/2 5/8 3/4 1 1 1/4
Correcti-
on value
mm 0,14 0,14 0,14 0,21 0,16
Inch 0,006 0,006 0,006 0,008 0,006
Clam-
ping Ø
mm 12,7S 15,875S 19,05S
Inch 1/2S 5/8S 3/4S
Correcti-
on value
mm 0,14 0,16 0,19
Inch 0,006 0,006 0,007
Example: Clamping a tool with a shank Ø 20 mm. Desired
length 210 mm. Additonal length from the table: 0.13 mm.
Set the stop to 210 mm + 0.13 mm = 210.13 mm.
The length setting is performed differently depending on
whether or not the shrink-fit chuck has a tension spring:
-
Fix the measuring device with the clamping lever (47)
and swivel it to the rear – for chucks without tension
spring
- For chucks with a tension spring – use the stop
clamp to lock the length setting on the PRESET and
bring the PREST upwards
Chucks without tension spring
• Locking the length setting.
The tool stop (45) is locked using the clamping lever
(47) on the top of the device. Push the lever (47) back-
wards.
Operation
ON/OFF
ORIGIN
ZERO/ABS
HOLD
DATA
in/mm
47
ON/OFF
ORIGIN
ZERO/A
BS
HOLD
DATA
in/mm
45
57
