© 2021/09 Haimer POWER CLAMP
• Swing the tool stop (45) to the rear.
• Heat up the shrink-fit chuck.
All other preparations and settings on the POWER
CLAMP proceed as normal. The shrink-fit chuck will
be heated for the full time until the unit switches off
automatically.
Do not stop the heating prematurely.
This is important for the accuracy of the length
setting, because the correction allowances are
based on these fixed heating times.

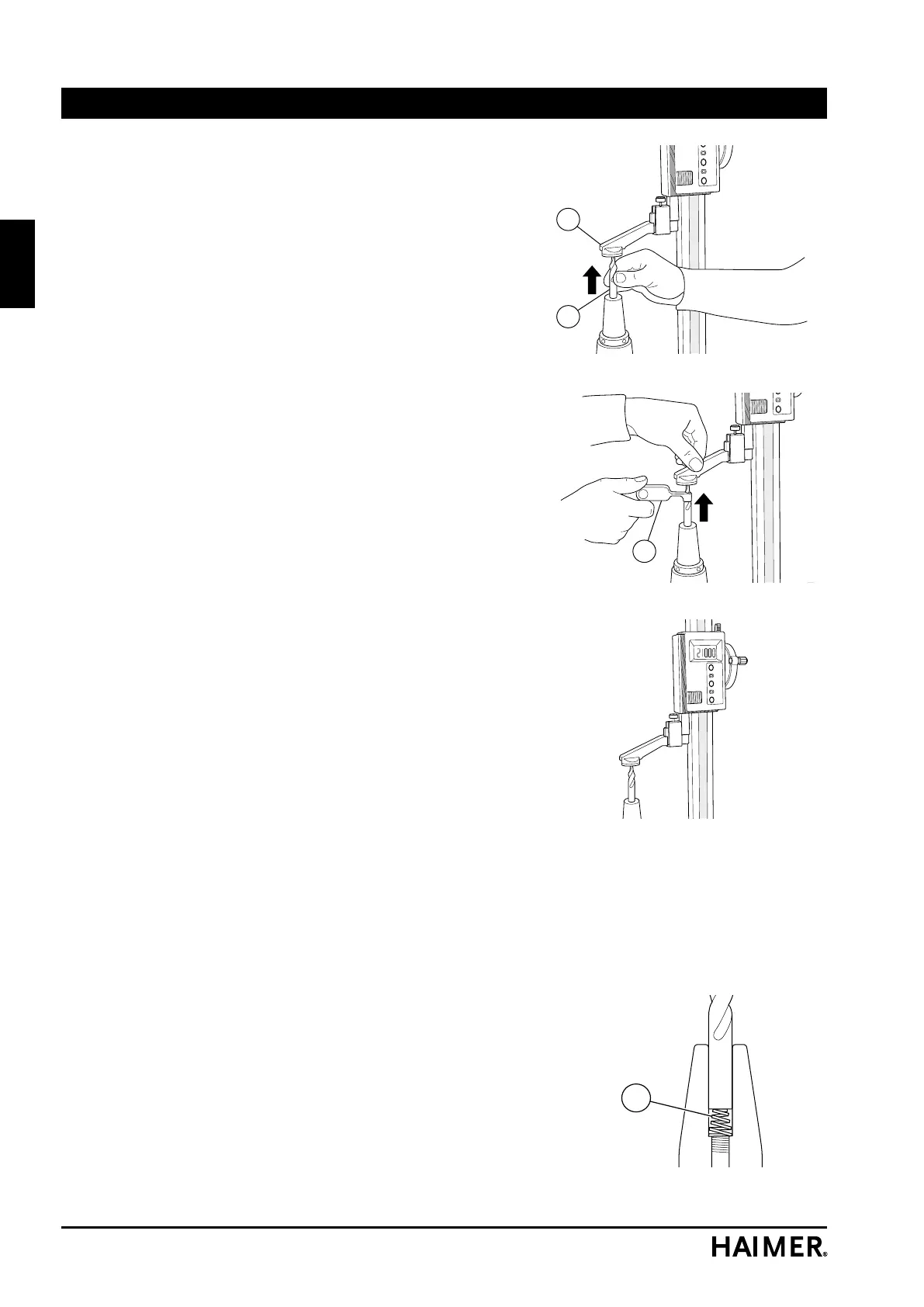

• Fully raise the coil.
• Insert the tool (57).
• Swing the tool stop (45) over the tool (57).
• Grasp the tool (57), pull it out to the tool stop (45)
and hold it until it is firmly positioned.
Gently twisting the tool lets you tell when the tool (57)
is locked.
For short tools we recommend special pliers (61),
because the tool can become very hot close to the
chuck.
• Lift the tool stop (45) from the cutting edge and swing
it to the rear.
• Push the chuck holder with the chuck support (14) and
tool (57) into the cooling position and place a suitable
cooling body over them.
• Check the result.
When the shrink fit chuck has fully cooled
down the length can be checked.
If the actual length varies from the desired length the
additonal length can be adjusted and the tool shrunk-fit
into the chuck again.
Chuck with tension spring
• Place the tension spring (62) in the shrink-fit chuck.
A suitable tension spring (62) is simply pushed into the
hole for the tool. The tension springs (62) are conical
in shape. The tool rests on the tip of the cone. The
stop screw normally fitted in the shrink-fit chuck must
be screwed right back or removed altogether. The
tension spring (62) can simply be pulled out of the
chuck again with a hook.
Operation
ON/OFF
ORIGIN
ZERO/A
BS
HOLD
DATA
in/mm
61
ON/OFF
ORIGIN
ZERO/ABS
HOLD
DATA
in/mm
ON/OFF
ORIGIN
ZERO/A
BS
HOLD
DATA
in/mm
45
57
