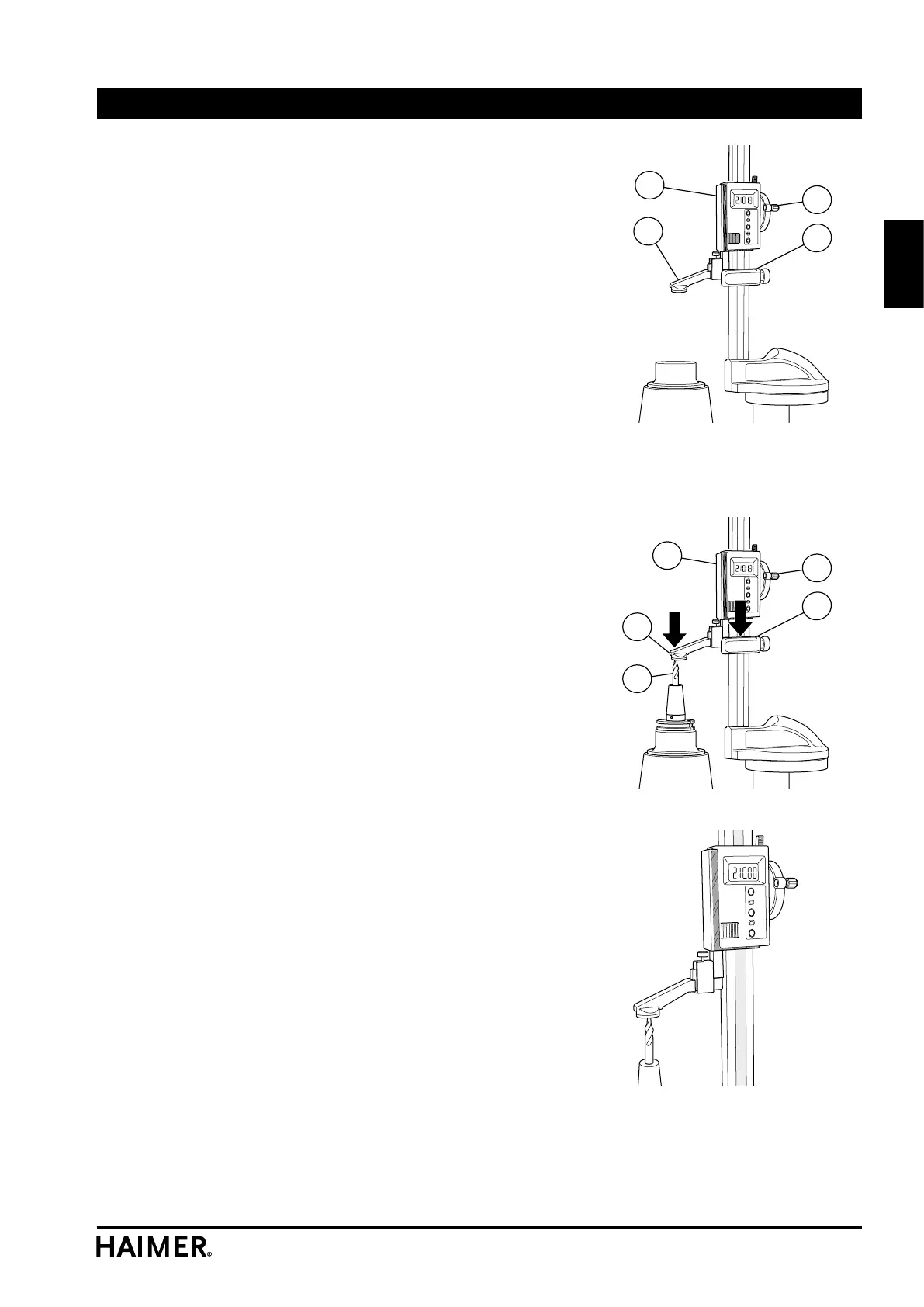

• Set the tool stop (45) to the desired length.
• Lock the stop grip (48).
Use the clamping screw under the measurement head
(44) to tighten the stop grip (48).
• Push the measurement head (44) upwards by about
100 mm and swing the tool stop (45) to the rear.
• Heat up the shrink-fit chuck.
All other preparations and settings on the POWER
CLAMP proceed as normal. The shrink-fit chuck will
be heated for the full time until the unit switches off
automatically.
Do not stop the heating prematurely.
This is important for the accuracy of the length
setting, because the correction allowances are
based on these fixed heating times.
• Fully raise the coil.
• Insert the tool (57).
• Swing the tool stop (45) over the tool (57) and lower it
until the measurement head (44) is resting on the stop
grip (48).
The tool stop (45) presses the tool (57) down, com-
pressing the tension spring (62) in the chuck to the
desired length.
Gently twisting the tool lets you tell when the tool (57)
is locked.
• Lift the tool stop (45) from the cutting edge and swing
it to the rear.
• Push the chuck holder with the chuck support (14) and
tool (57) into the cooling position and place a suitable
cooling body over them.
• Check the result.
When the shrink fit chuck has fully cooled
down the length can be checked.
If the actual length varies from the desired length the
additonal length can be adjusted and the tool shrunk-fit
into the chuck again.
