2. Check that menu [3.2.1 Flow calibration] uses the correct PPU
value corresponding to the sprayer’s flow housing.
3. Go to menu [3.5.2.1 Water level].
4. Fill the sprayer completely up to the filler lid in the top of the tank,
with a known amount of water, using an external calibrated
flowmeter. Alternatively weight the sprayer before and after filling,
and note the weight difference.
5. Press #.
μ
ATTENTION! As the accuracy of the custom calibration is affected, it is of high importance that the external calibrated
flowmeter measures the correct quantity within a 2 % deviation. Same accuracy of 2 % must be kept if weight
difference of the sprayer before/after filling is used.
±
WARNING! Do not leave the sprayer while filling the tank and keep an eye on the level indicator in order NOT to
overfill the tank.
6. Press # after ensuring the sprayer is level. Refill the tank up to the
tank lid if the sprayer is re-levelled.

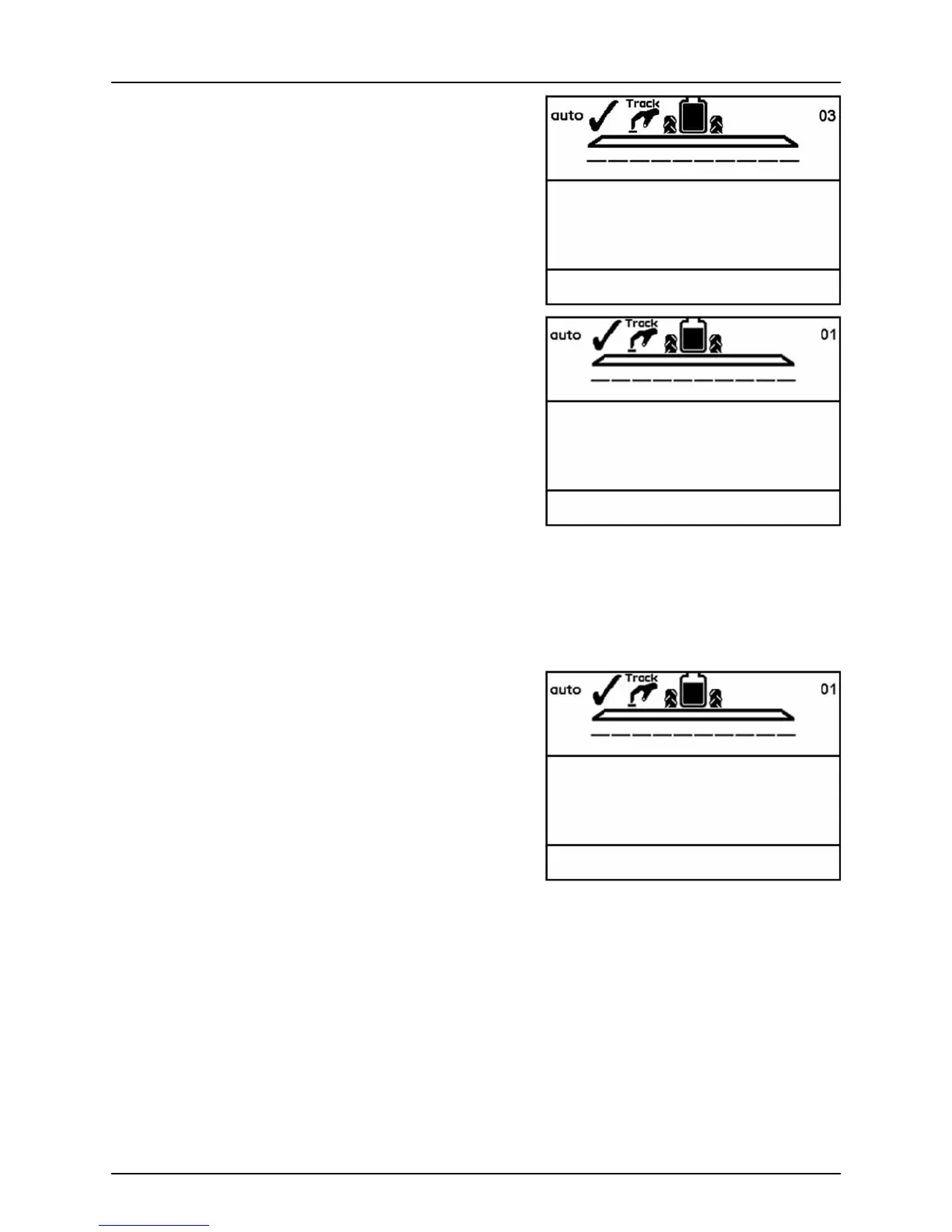

3.2.1 Flow calibration
485 .000
PPU
EU units: FlowSensor dia/ca PPU: Ø13/120,Ø20/60,Ø36/17
US units: FlowSensor dia/ca PPU: Ø13/485,Ø20/225,Ø36/60
3.5.2.1 Water level
0
inches
Fill up the tank to the max level, then press Enter
3.5.2.1 Water level
0
inches
Level the sprayer, then press Enter
To Next Page
