MARK IV HD J2 TAMPER OPERATION PAGE 2.2 - 27
BULLETIN 5082505 JUPITER II REVISED 10 - 2020
2.2
2.2.8 Mode Select Panel - See Figure 2.2-16
1. To switch from the Travel Mode to the Work Mode or vise-versa, press the Travel
/ Work Key on the Left Operator Keypad to display the Mode Select Panel on the
screen. This panel is used to select the desired operating mode (Travel - Work -
Pump Control) of the machine. The panel displays the following:
(1) F1 Travel Select Button: Press the button or the F1 Key on the Right Operator
Keypad or computer keyboard to enable the Travel Mode and display the Travel
Mode Screen.
(2) F2 Work Select Button: Press the button or the F2 Key on the Right Operator Keypad
or computer keyboard to enable the Work Mode and display the Work Mode Screen.
(3) F3 Pump Control Pressure Button: Press the button or the F3 key on the Right
Operator Keypad or computer keyboard to display the F3 Pump Control Pressure
Panel on the screen to check and/or adjust the Pumps P1 - P2 hydraulic pressure
control.
(4) Escape Button: Press the button or the Escape Key on the Right Operator Keypad or
computer keyboard to remove this panel from the screen and remain in the previously
selected operating mode.

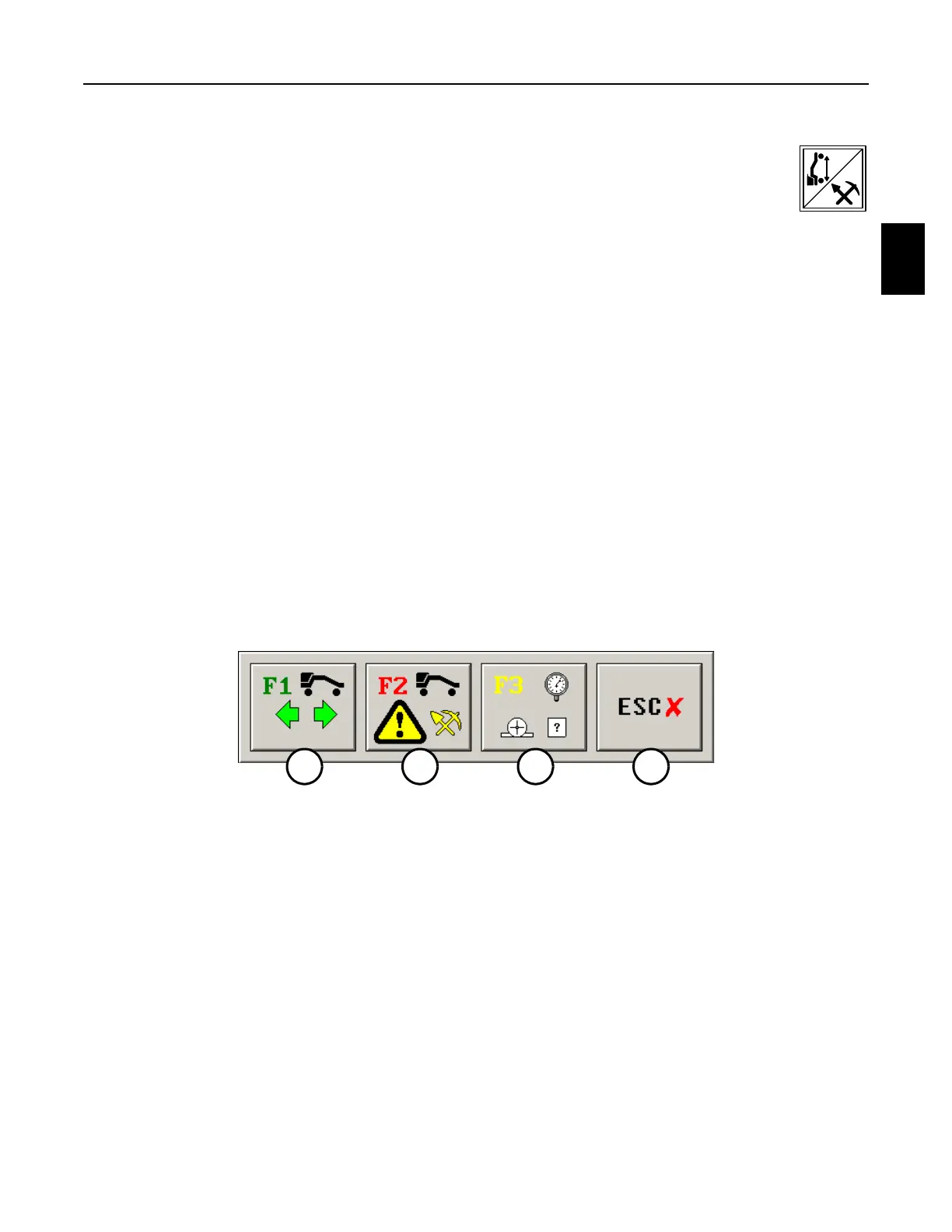

FIGURE 2.2-16
MODE SELECT PANEL
1 3 32
