MARK IV HD J2 TAMPER OPERATION PAGE 2.2 - 41
BULLETIN 5082505 JUPITER II REVISED 10 - 2020
2.2
2.2.10 Machine Status Panel - See Figures 2.2-24 and 2.2-25
2. Important: The following indicators described are normally displayed on computer boot-
up. The actual indicators that can displayed will be determined by which options are turned
ON. See 1st Toolbar Set - F5 Options Select Button / Panel to turn other options On or Off
and operation information.
(12) Index Brake Applied Indicator: The indicator will highlight yellow when the Index
Brake Option is turned ON. The indicator will un-highlight gray when the Index Brake
Option is turned OFF.
(13) Auto Traction Indicator / Timer: The indicator will highlight yellow when the Auto
Traction Option is turned OFF. The indicator will un-highlight gray when Auto Traction
Option is turned OFF.
a. The value shown indicates the current setting of the traction delay timer.
(14) Clamp Underfoot Lift Indicator: The indicator will highlight yellow when the Clamp
Underfoot Lift Option is turned ON. The indicator will un-highlight gray when the
Clamp Underfoot Lift Option is turned OFF.
(15) Other Options Indicator: Another option indicator may be displayed if turned ON.

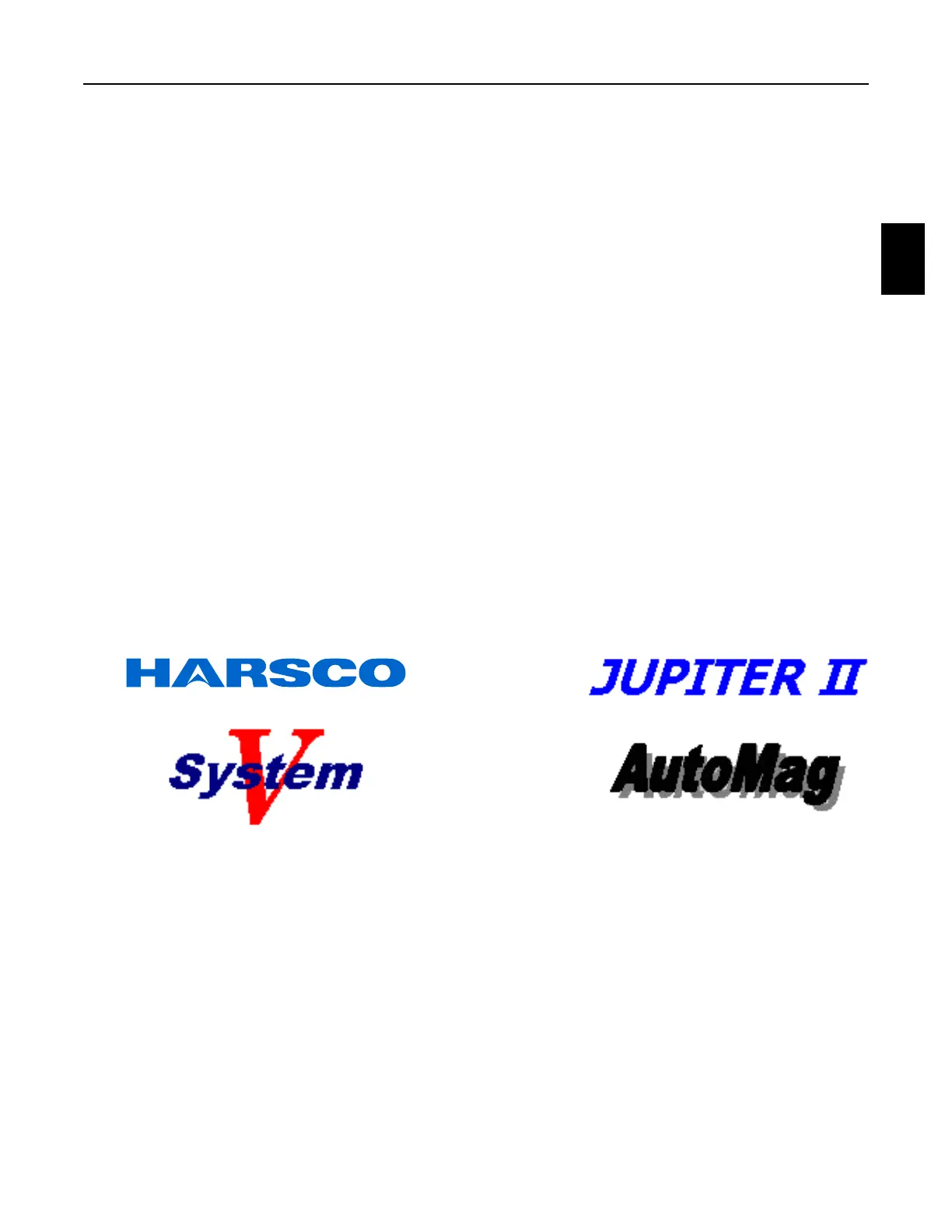

3. As different Jupiter operating screens are displayed on the monitor, the Logos (16)
displayed on the Machine Status Panel will change between the following Logos:
