PAGE 2.1 - 66 OPERATION MARK IV HD J2 TAMPER
REVISED 10 - 2020 CONTROLS BULLETIN 5082505
2.1
2.1.16 Diesel Fired Cab Heater Option - See Figure 2.1-49
The Diesel Fired Cab Heater Option is used to provide additional cab heat during cold weather
operation. The system consists of the following components:
(1) Cab Heater Unit: Located inside the cab below the right control panel.
(2) Diesel Fuel Tank: Located on the outside of the right cab wall ahead of the air
conditioner / pressurizer unit.
1. Important: See Appendix B - Miscellaneous - Espar Heater (Airtronic D4) for Operating
Instructions.
2. Check the fuel level in the Fuel Tank (2) before using the Heater Unit (1).

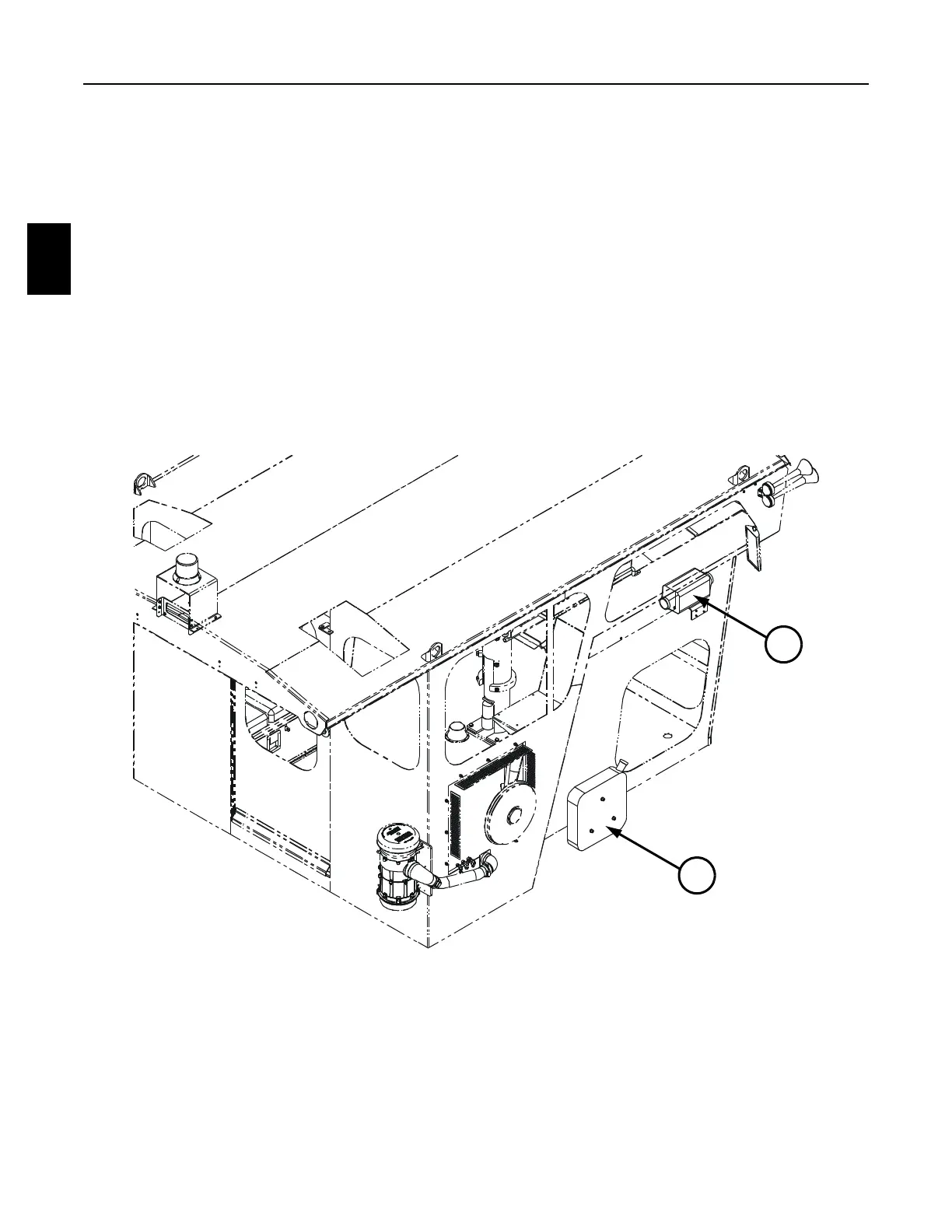

FIGURE 2.1-49
DIESEL FIRED CAB HEATER OPTION
2
1
