Configuration
CANHEAD A01185_11_X00_00 HBM: public 21
There is an eleventh measurement channel for temperature compensation
using a compensating strain gage or Pt100.
Temperature compensation is only supported with MGCplus.
The CANHEAdirect interface does not support this function.
Notice

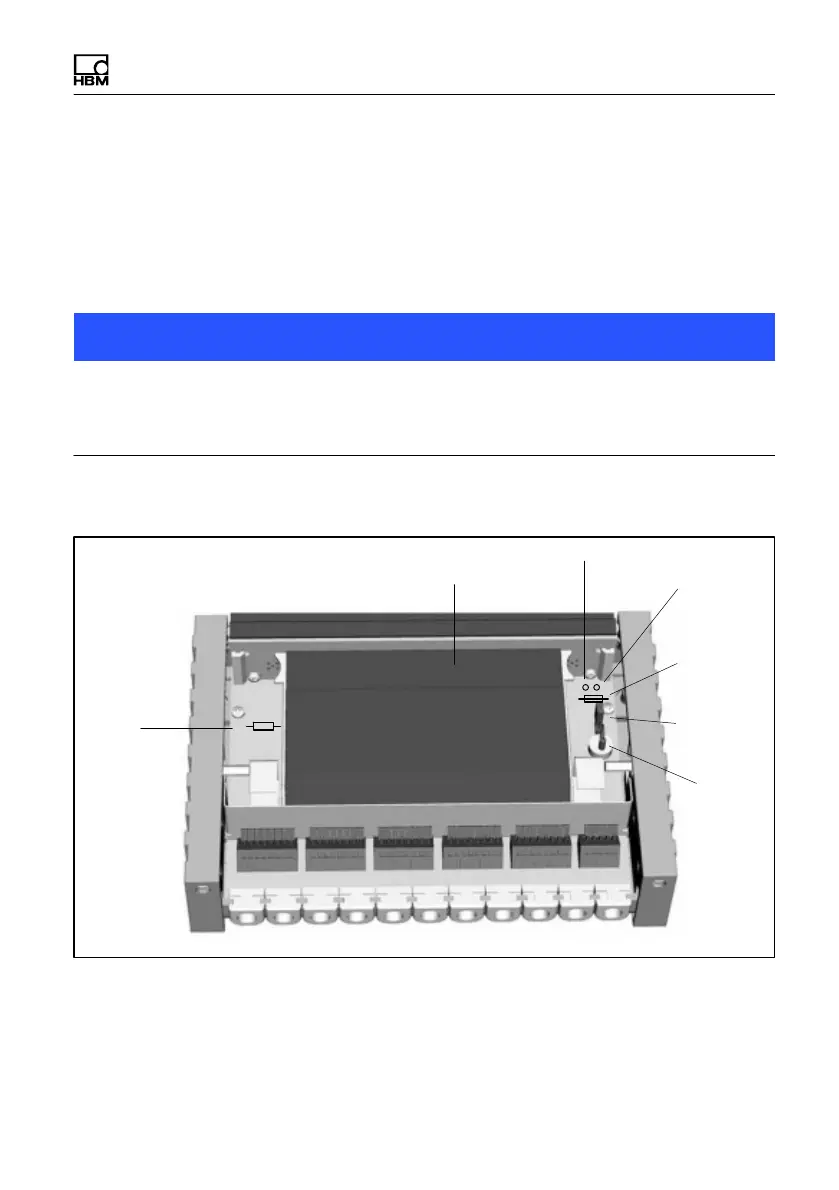

When the lid of the CANHEAD is open, you can see a coding resistor on the
left next to the amplifier module. The coding resistor indicates the version of
the base module (120 W, 350 W), it does not have an electrical function!
Coding
resistor
Fuse
Amplifier module
LED Red
LED Green
Jumper
ext./int.
shunt
Shunt
1)
1)
see chapter 6.1.1
