Mechanical
installation
22
A0608-14.0
HBM:
public
T10F
6.3.2

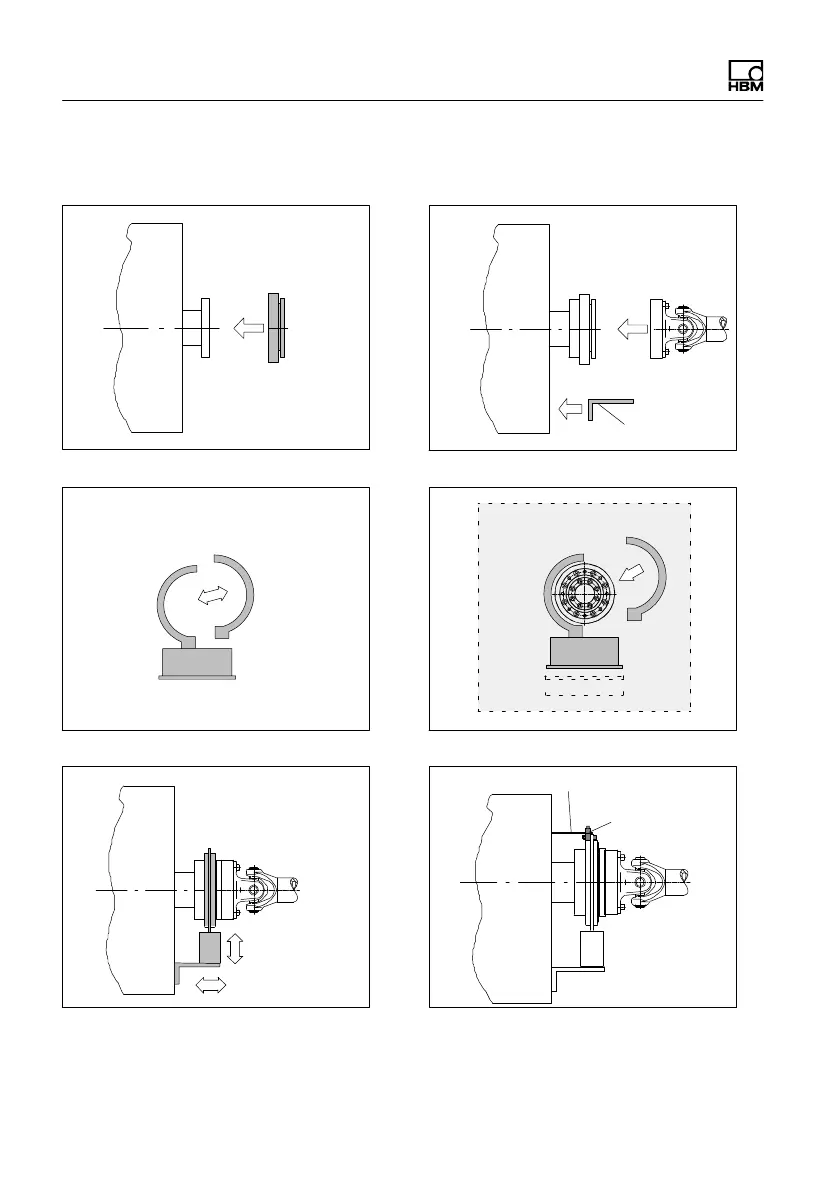

Installation
with subsequent stator mounting
2. Install shaft train
3. Remove one antenna segment
5. Align stator and finish installation
4. Install antenna segment around shaft train
Support
supplied by customer
Clamp fixture
6. Mount the clamp fixture where required
Customer mounting
.
.
21
23
