Electrical connection

38 A0608-14.0 HBM: public T10F

7.1.1 FCC and IC compliant installation for US and

Canada installation only

Use of EMI suppressor

To suppress high frequencies a EMI suppressor on the

power cable has to be used. Use at least 3 loops of the

cable.

Fastening must be done in an area not subject to

mechanical loads (i.e. no unwanted vibrations, etc.) using

cable ties fit for the specific application.

EMI suppressor

Cable ties

Mounting fixture

3 Loops

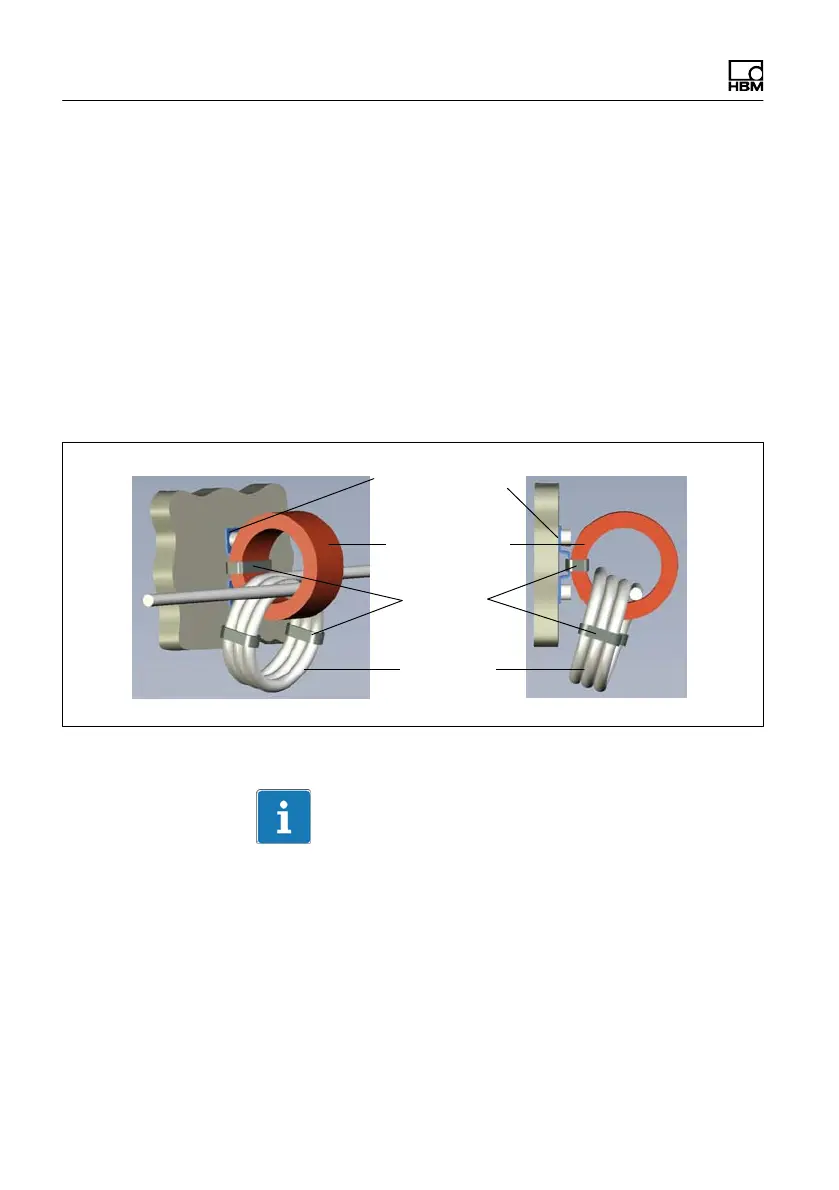

Fig. 7.1 Installation example EMI suppressor

Information

Consider longer cable of approximately 40 cm due to the

installation of the EMI suppressor.
