HBM T10F - Aligning the Speed Module

Settings
T10F A0608-14.0 HBM: public 53
calibration signal is triggered, the LED shines more
brightly.

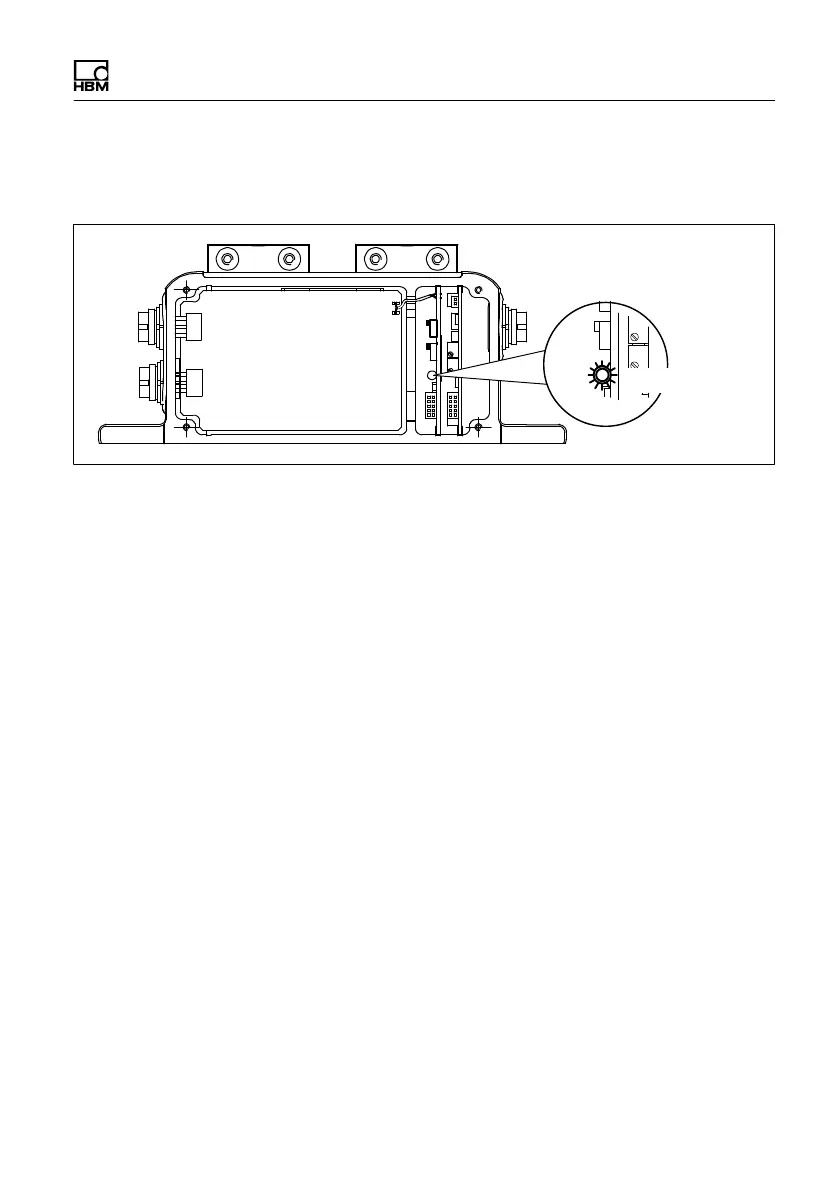

Control LED
Fig. 9.4 Power transmission function test
9.4.2 Aligning the speed module
When required, you can test the correct functioning of
the speed measuring system.
1. Remove the cover of the stator housing.
2. Turn the rotor by at least 2 min
-1
.
If both the control LEDs come on while you are turning
the rotor, the speed measuring system is properly
aligned and fully operational.
