9.5 Setting the pulse count
The number of pulses per revolution of the rotor in the
speed module option can be adjusted by means of DIP
switches S1...S4.
Switches S1 ... S4

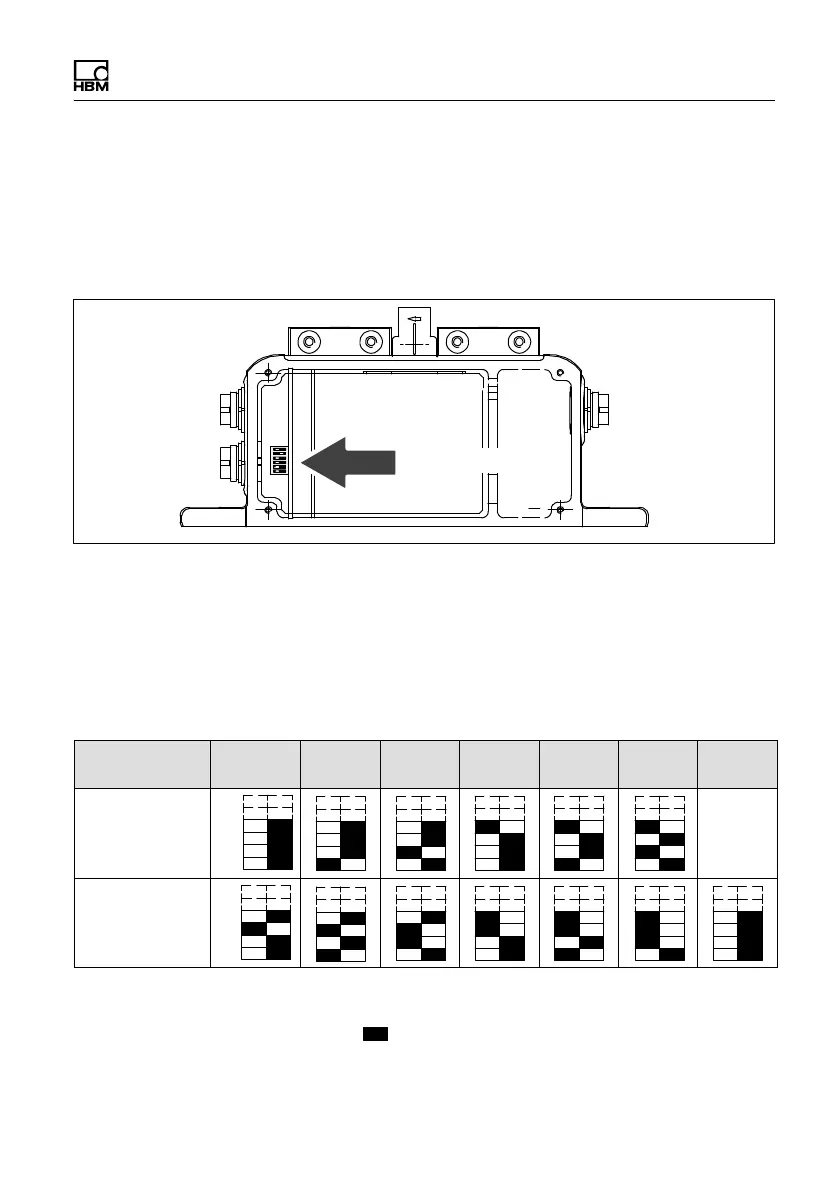

Fig. 9.6 Switches for setting the pulse count
Setting the pulse count
1. Remove the stator cover.
2. Use switches S1 ... S4 as per Tab. 7.1 to set the
required pulse count.
Pulses/
revolution1)
360 180 90 60 30 15 720
Rated torque
50 N⋅m...1 kN⋅m
S1
S4
Rated torque
2 N⋅m...10 kN⋅m
S1
S4
1)
Factory setting with option 4
Fig. 9.7 Switch settings for the pulse count
( ¢ switch lever)
