Mechanical installation
T10F A0608-14.0 HBM: public 33
6.7 Fitting the slotted disc
(speed measuring system)
To prevent damage to the optical speed measuring
systems' slotted disc during transportation, it is not
mounted on the rotor. Before installing the rotor in the
shaft train, you must attach it to the adapter flange (or
intermediate flange). The associated speed sensor is
already mounted on the stator.
The requisite screws, a suitable screwdriver and the
screw locking device are included in the list of
components supplied.

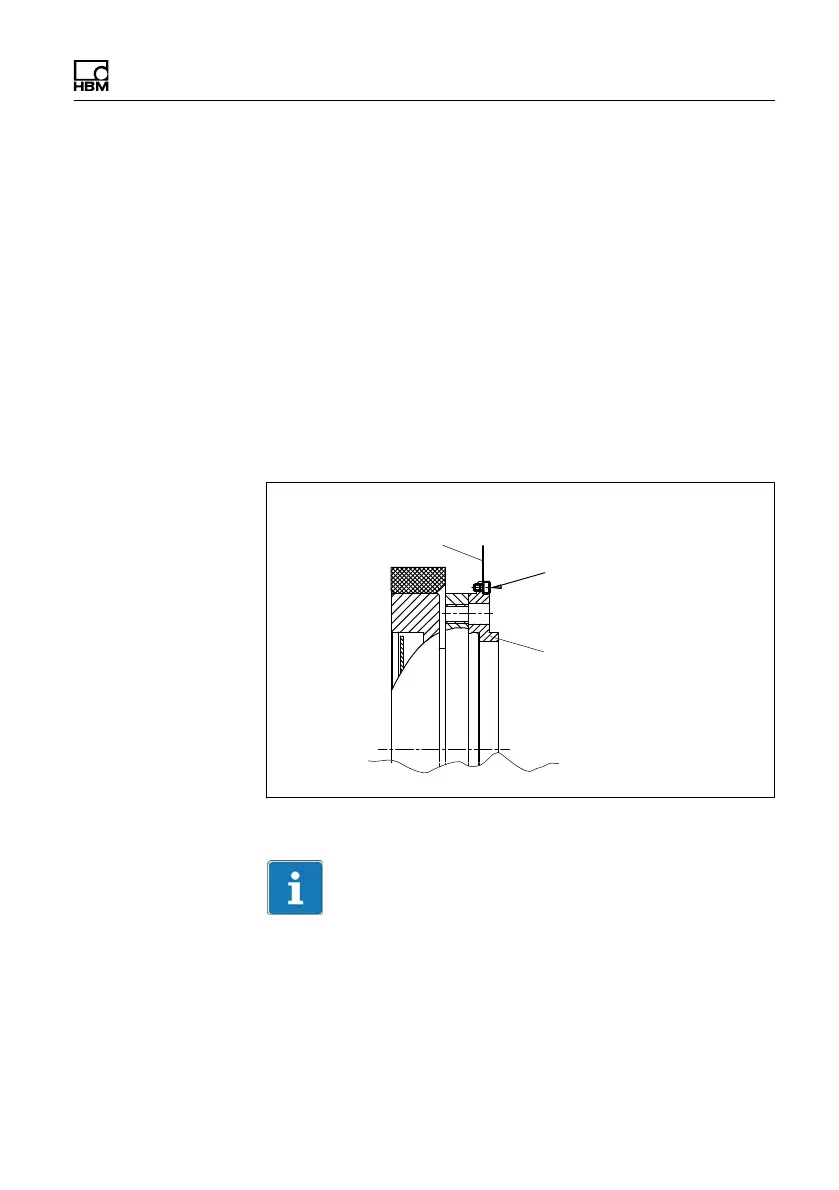

Screw for fastening the
slotted disc with slotted disc
turned in the cutting plane
Slotted disc
Intermediate flange
(50 N⋅m and 100 N⋅m only)
Fig. 6.8 Installing the slotted disc
Important
At all stages of the mounting operation, be careful not to
damage the slotted disc!
