HBM T10F User Manual

Dimensions
64 A0608-14.0 HBM: public T10F

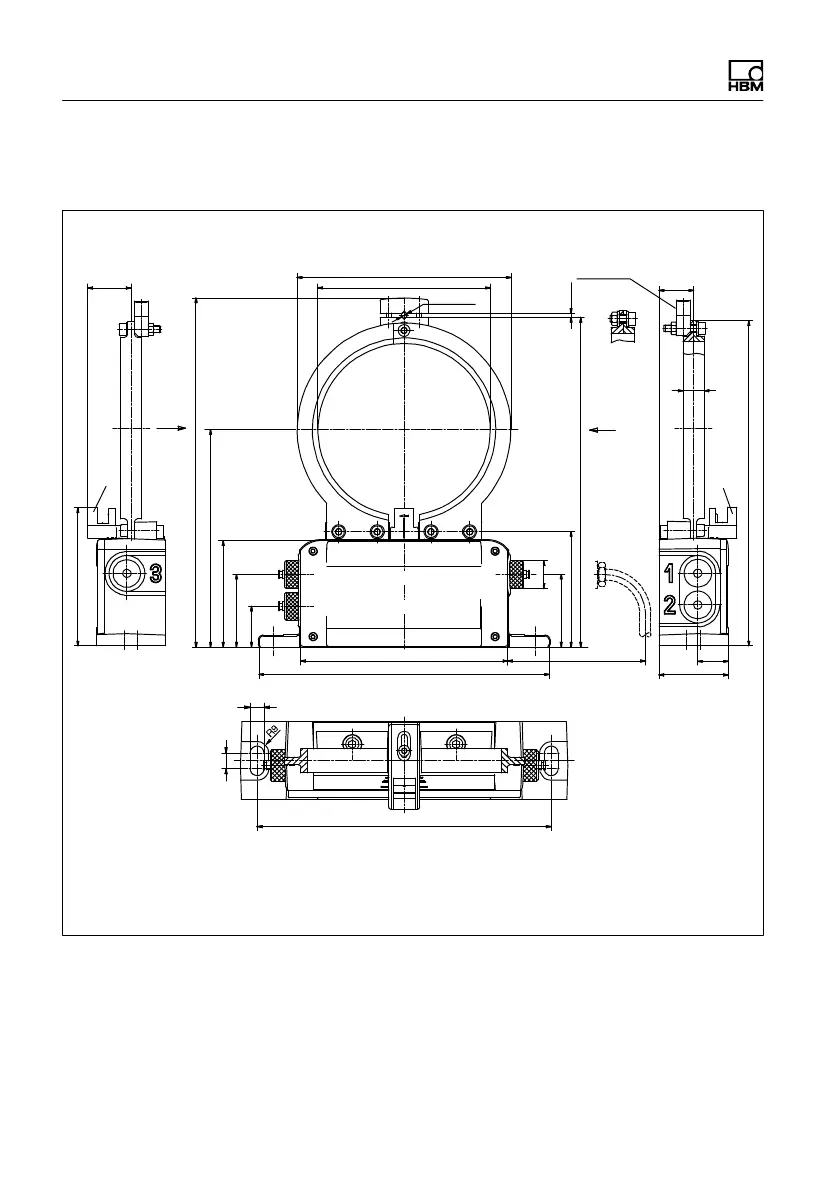

12.2 Stator dimensions
100
H3
max.
H2
h
∅20
max. ∅4
∅ d
∅ D
**
l
**
50
22
H1
25
Side view Y
approx. 3
Clamp fixture
not mounted
as standard!
Side view X
Standard
screw
fitting
Connector
3***
Connector 1
Top view
*
Space for connection cable with connector
**
Only for speed measuring system option
***
Does not apply to version KF1
10
190
9
Accuracy of the cast base sizes
as per DIN 1688-GTA 14/5
b
Y
X
210
+2
150
+2
77
52.5
29.5
83.5
52.5
Connector 2
**
approx. 100*
