Settings
50 A0608-14.0 HBM: public T10F
9 Settings
Important
You will find a table containing all the relevant switch
positions on the back of the stator cover. Changes to the
factory settings should be noted or entered here using a
waterproof felt‐tip pen.
Impulse/Umdrehung
Pulses/revolution
720
360
180 90 60
30 15
Einstellungen / Settings OPTION 5
M
nom
100 Nm
to 3 kNm
M
nom
5 kNm
to 10 kNm
Hysterese
Hysteresis
ein/on aus/off
CH1
CH2
Frequenz
Ausgangsspannung
Frequency output
voltage
ON DIP
1 2 3 4 5 6
WERKSEINSTELLUNG
Factory settings
Eigene Einstellungen
Customized settings
CH1
CH2
2xf
0
+
-

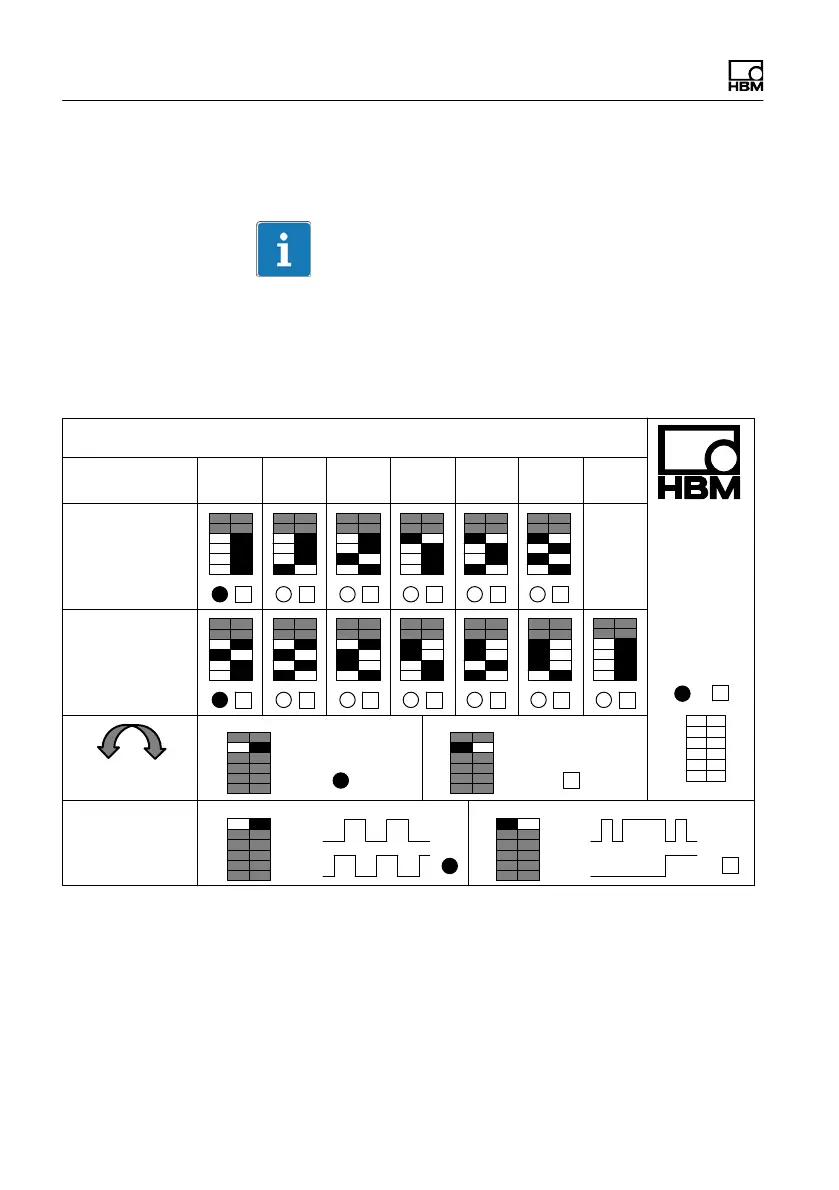

Fig. 9.1 Sticker with switch positions; optical speed
measuring system
