HBM T10F User Manual

Specifications
T10F A0608-14.0 HBM: public 81

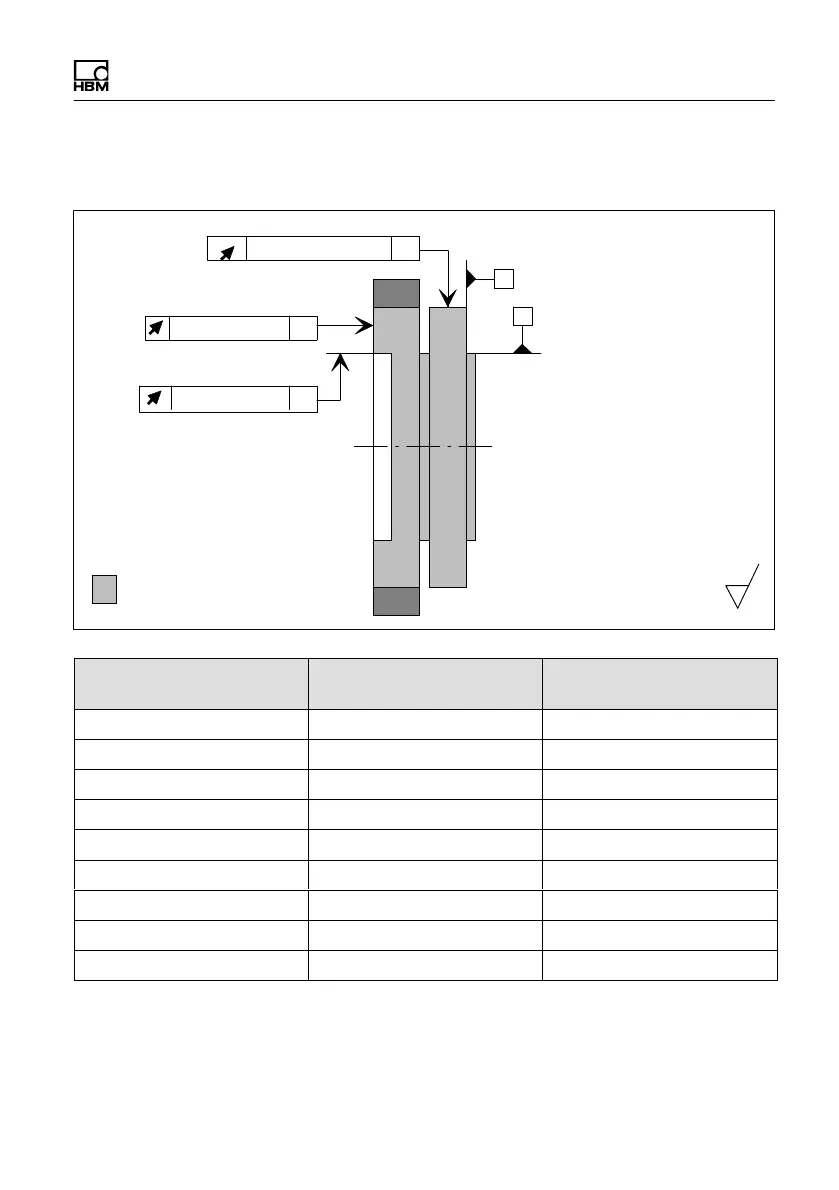

15.2 Axial and radial run‐out tolerances
Internal centering
Outside diameter
A
Axial runout
B
Radial run-out
AB
Radial run-out
AB
Adapter flange
Measuring body
Hardness 46 ... 54 HRC
Surface quality of the run−out
and concentric surfaces (A, B
and AB)
0.8
AB
Measuring range Axial runout tolerance
(mm)
Radial run‐out tolerance
(mm)
50 N⋅m 0.02 0.02
100 N⋅m 0.02 0.02
200 N⋅m 0.02 0.02
500 N⋅m 0.02 0.02
1 kN⋅m 0.02 0.02
2 kN⋅m 0.04 0.04
3 kN⋅m 0.04 0.04
5 kN⋅m 0.04 0.04
10 kN⋅m 0.04 0.04
