Electrical connection
T10F A0608-14.0 HBM: public 39
500 mm

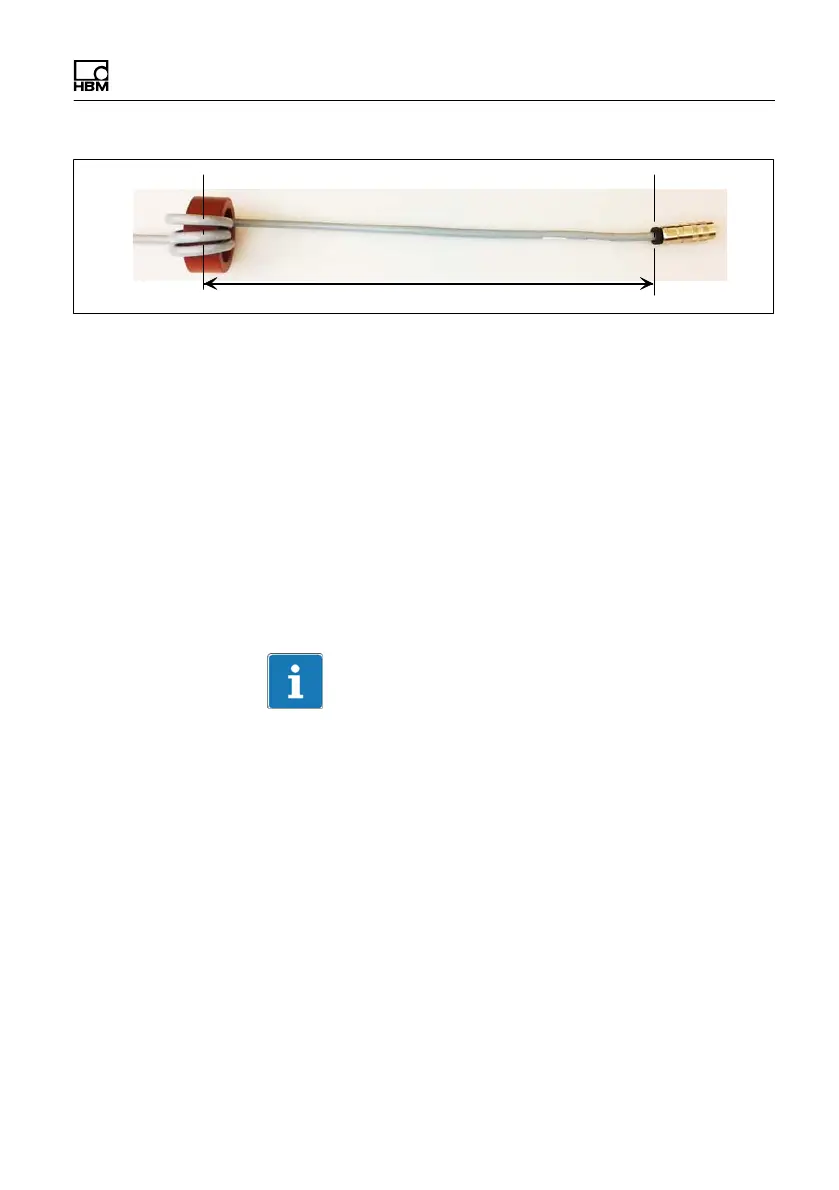

Fig. 7.2 Max. distance of EMI suppressor to connector
If the EMI suppressor has to be removed for any purpose
(e.g. for maintenance), it must be replaced on the cable.
Use only EMI suppressor of the correct type.
Type: Vitroperm R
Model No.: T60006-22063W517
Size: external diameter x internal diameter x height =
63 x 50 x 25
The installation requires a EMI suppressor to be added to
the cable. Additional fixture should be used to prevent
stress on the connector due to extra weight of the cable.
Important
The use of the EMI suppressor on the power cable
(plug 1 or plug 3) is mandatory to ensure compliance
with FCC regulations.
7.2 Shielding design
The cable shield is connected in accordance with the
Greenline concept. This encloses the measurement
system (without the rotor) in a Faraday cage. It is
important that the shield is laid flat on the housing ground
at both ends of the cable. Any electromagnetic
interference active here does not affect the measurement
