52 A0608-14.0 HBM: public T10F

the installation. The balancing range is a minimum of

"400 mV at nominal (rated) gain. The end point

potentiometer is used for compensation at the factory

and is capped with varnish so that it cannot be turned

unintentionally.

Important

Turning the end point potentiometer changes the factory

calibration of the voltage output.

Zero point

End point

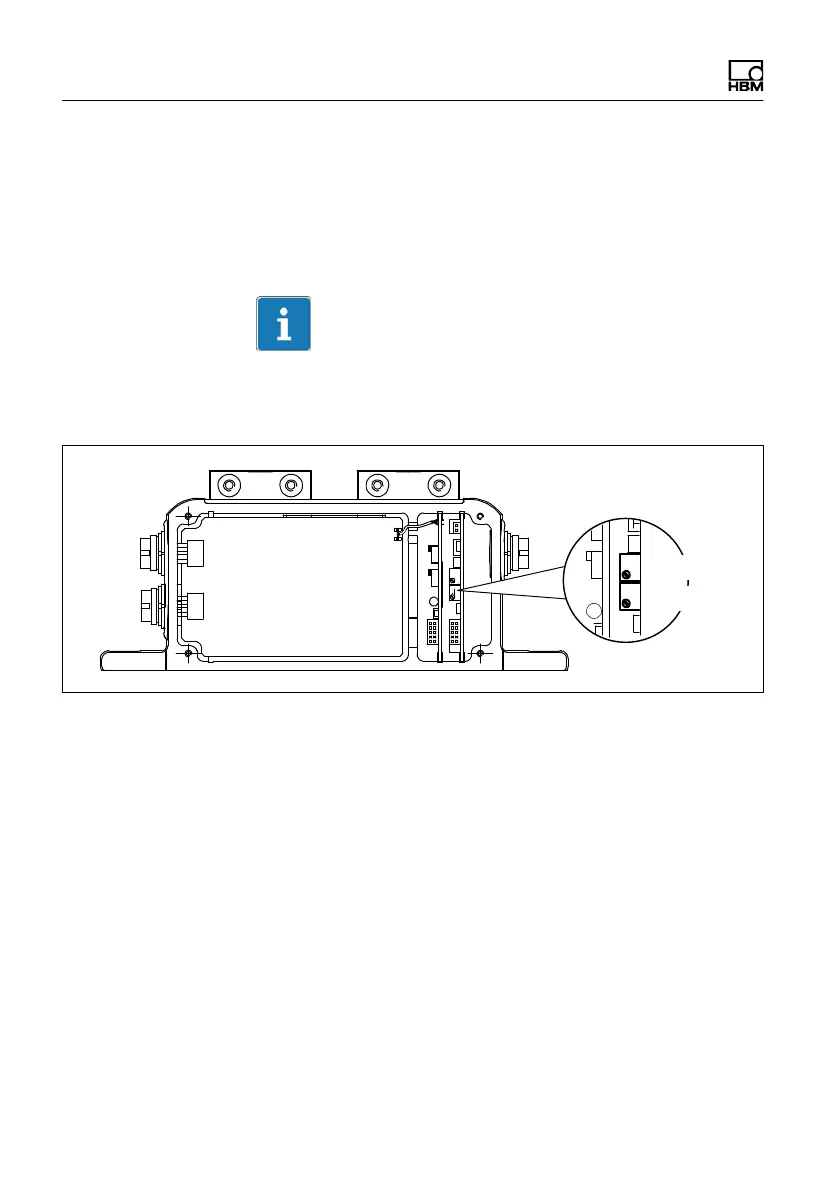

Fig. 9.3 Setting the voltage output zero point

9.4 Functional testing

9.4.1 Power transmission

If you suspect that the transmission system is not

working properly, you can remove the stator cover and

test for correct functioning. If the LED is on, the rotor and

stator are properly aligned and there is no interference

with the transmission of measurement signals. When the
